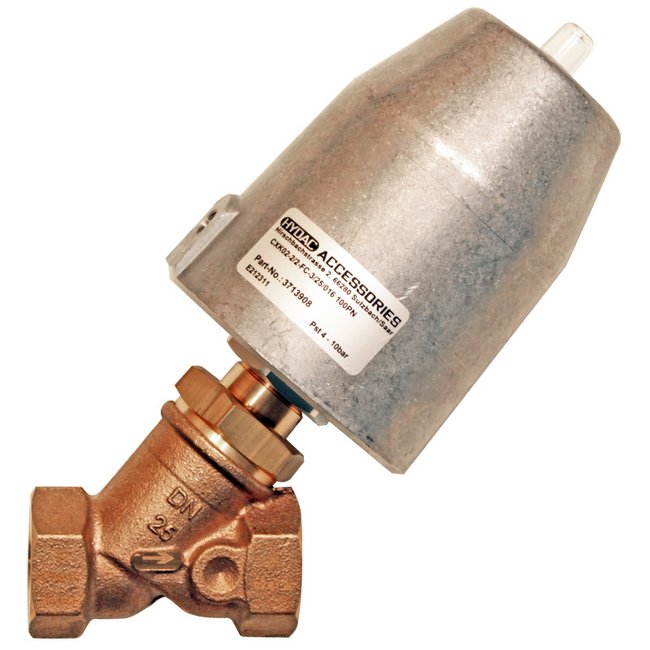

Brass Coaxial Angle Seat Valve - CX Series
Brass Coaxial Angle Seat Valve - CX Series
SKU:ACC-6a2424
High-performance Brass Coaxial Angle Seat Valve for precise flow control in industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Brass Coaxial Angle Seat Valve - CX Series
$99.99
Quantity: 1
Claim Your Seller Account
Brass Coaxial Angle Seat Valve - CX Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Coaxial Angle Seat Valve from the CX Series is a high-performance 2/2 Way Piston Valve designed for gaseous, liquid, and contaminated media. With a durable brass, nickel-plated body, it ensures reliable operation under temperatures ranging from -10°C to 100°C and pressures up to 8 bar. Actuated by a 24V electric system, this valve features a Normally Closed switching function and IP 65 degree of protection. Its back pressure resistance of up to 16 bar makes it suitable for diverse industrial applications. This valve guarantees efficient flow control with no orientation restrictions and quick installation, meeting the rigorous standards of process and automated valves.
Product Specifications
Specifications 3 Day Lead Time
No
Specifications Actuator Type
Electric
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass, Nickel Plated
Specifications Degree Of Protection
IP 65 When Fitted with Connector Plug
Specifications Division
ACCESSORIES
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
8 bar | 116 psi
Specifications Product
BALL VALVES
Specifications Product Group Family
PROCESS AND AUTOMATED VALVES
Specifications Switching Function
Normally Closed
Specifications Thread Type
BSPP
Specifications Type
2/2 Way Piston Valve
Specifications Voltage
24 V
