Brass Compact Fittings ISO, Nickel Plated - 1-inch Straight Connector
Brass Compact Fittings ISO, Nickel Plated - 1-inch Straight Connector
SKU:FIT-313218
Enhance connections with our durable Nickel Plated Brass Compact Fittings ISO - UL Listed, CSA Certified, RoHS WEEE Compliant. Strength, durability, and corrosion resistance for your projects.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Brass Compact Fittings ISO, Nickel Plated - 1-inch Straight Connector
$14.99
Quantity: 1
Claim Your Seller Account
Brass Compact Fittings ISO, Nickel Plated - 1-inch Straight Connector
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

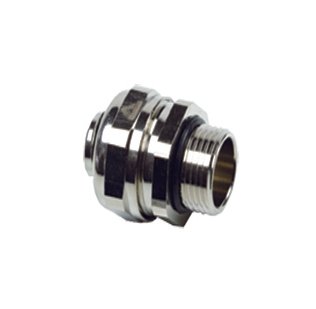

Upgrade your installation with our high-quality Nickel Plated Brass Compact Fittings ISO. Crafted with a four-piece construction including a gland nut, sealing ring, grounding cone, and body, these fittings ensure secure connections and superior corrosion resistance. With UL Listed, CSA Certified, and RoHS WEEE Compliant certifications, our fittings meet stringent industry standards. The compact design, along with brass core material, guarantees strength and durability in various applications. Experience easy installation and reliable performance with these fittings, making them ideal for both consumer and institutional use.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

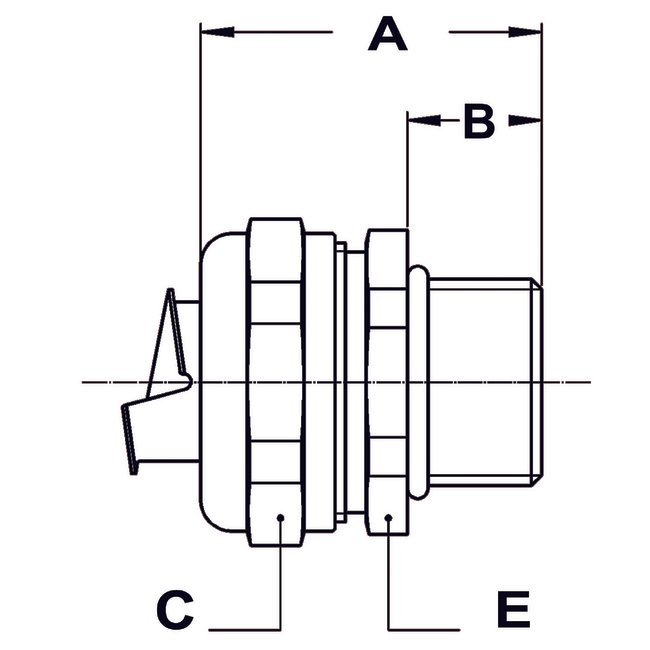

Specifications Dimension A
1.417 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.771 in
Specifications Dimension E
1.732 in
Specifications Electrical Trade Size
1 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M32 X 1.5
Specifications Type
Compact Nickel Plated Brass
