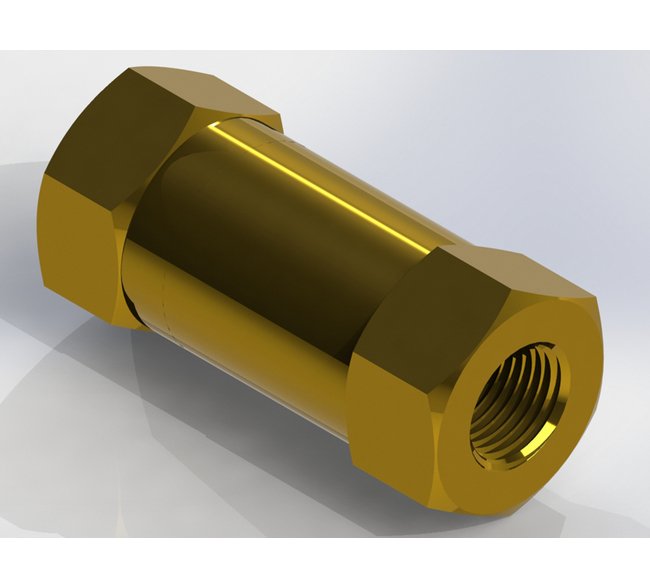

Brass Disk Check Valves - NPT Connection, High Flow Capacity
Brass Disk Check Valves - NPT Connection, High Flow Capacity
SKU:CHE-faa786
Enhance fluid/gas systems with reliable Brass Disk Check Valves for high flow, low pressure loss, and max. 150 psig. Prevents reverse flow effectively.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Disk Check Valves - NPT Connection, High Flow Capacity
$29.99
Quantity: 1
Claim Your Seller Account
Brass Disk Check Valves - NPT Connection, High Flow Capacity
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

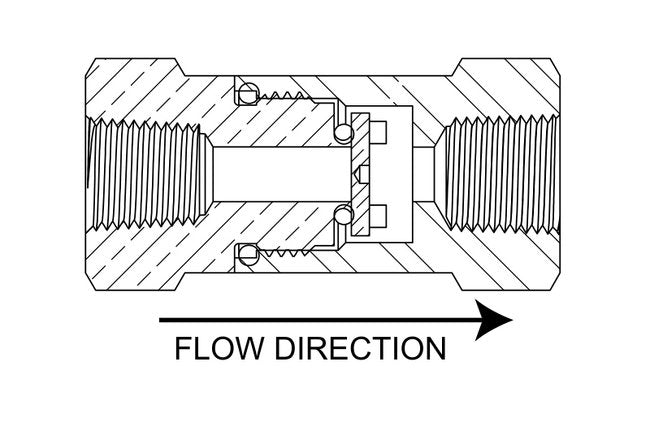

Upgrade your fluid or gas systems with our brass disk check valves. Crafted from high-quality brass and designed for reliability, these valves offer low pressure loss, high flow capacity, and long-lasting performance. With a low cracking pressure and Viton seal, they prevent reverse flow effectively. Operating at up to 150 psig and 225°F, these check valves are ideal for institutional and government procurement requirements.
Product Specifications

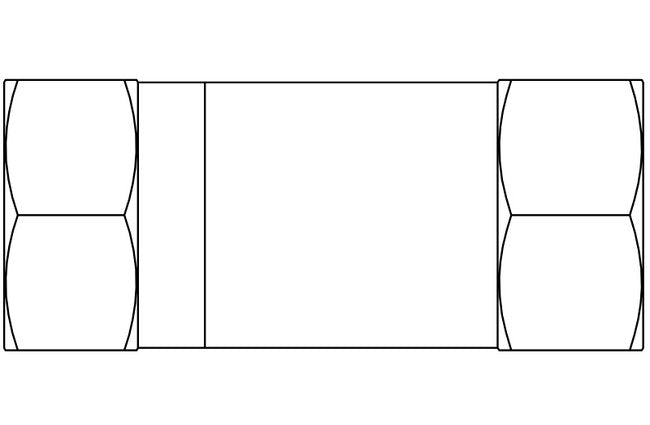

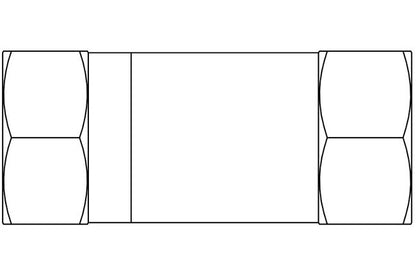

Dimensions Total Length
1.625 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.43
Specifications Disk Material
Brass
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
