Brass Encapsulated 2-way Ball Valve, 1/4-18 FNPT, EB Series
Brass Encapsulated 2-way Ball Valve, 1/4-18 FNPT, EB Series
SKU:VAL-a7b207
Durable Brass 2-way Ball Valve with FNPT Connections, Cv: 0.90, Locking Handle, Ideal for Fluid Control
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Brass Encapsulated 2-way Ball Valve, 1/4-18 FNPT, EB Series
$49.99
Quantity: 1
Claim Your Seller Account
Brass Encapsulated 2-way Ball Valve, 1/4-18 FNPT, EB Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with our EB Series Brass 2-way Ball Valve. Constructed with brass and featuring FNPT connections, this valve ensures durability and efficient flow management. With a Cv of 0.90, modified PTFE packing, and a green Nylon handle with Stainless Steel insert, this valve offers secure and precise operation. Designed with locking hardware, it provides added safety measures. Operating at a maximum pressure of 3000 psig and temperatures ranging from -65 to 300 °F, this valve is ideal for a wide range of industrial applications. Enhance your systems with reliability and performance.
Product Specifications

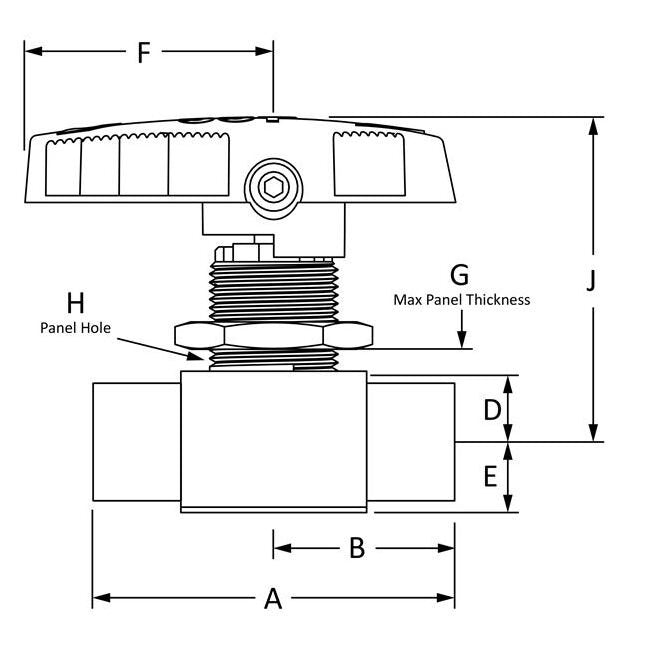

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

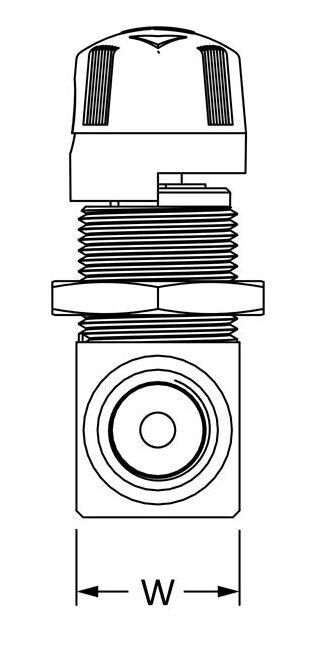

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Cv
0.90
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
