Brass Encapsulated 2-Way Ball Valves - EB Series
Brass Encapsulated 2-Way Ball Valves - EB Series
SKU:VAL-bd66d1
Durable Brass 2-way Ball Valves from EB Series, Cv: 0.75, ideal for precision flow control in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Brass Encapsulated 2-Way Ball Valves - EB Series
$89.99
Quantity: 1
Claim Your Seller Account
Brass Encapsulated 2-Way Ball Valves - EB Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior fluid control with our Brass Encapsulated 2-way Ball Valves from the EB Series. Constructed with high-quality Brass body and Duolok Tube Fittings, these valves feature a Cv of 0.75 for efficient flow management. The modified PTFE packing and Yellow Nylon handle with Stainless Steel Insert ensure durability and reliability in various industrial applications. With a working pressure of 3000 psig and a wide temperature range of -65 to 300 °F, these valves offer exceptional performance and longevity.
Product Specifications

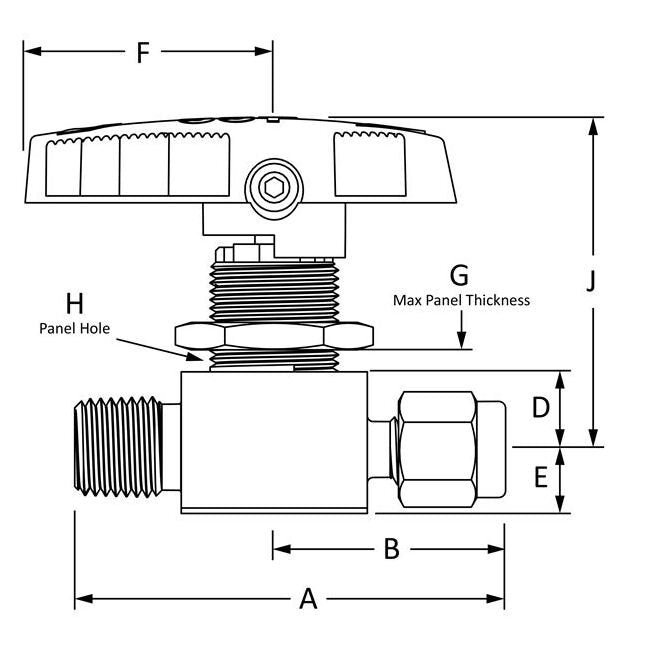

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Duolok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
