The Brass Encapsulated 2-way Ball Valves from the EB Series are designed for superior performance and durability. Crafted from high-quality brass with MNPT and Duolok Tube Fitting connections, these valves offer a Cv of 0.75 and feature modified PTFE packing. The black nylon handle with stainless steel insert and locking hardware ensure secure operation. With a working pressure of 3000 psig and a temperature range of -65 to 300 °F, these valves provide reliable control in a variety of applications. Elegantly engineered with precise dimensions, these valves meet the demands of both consumer and institutional buyers.

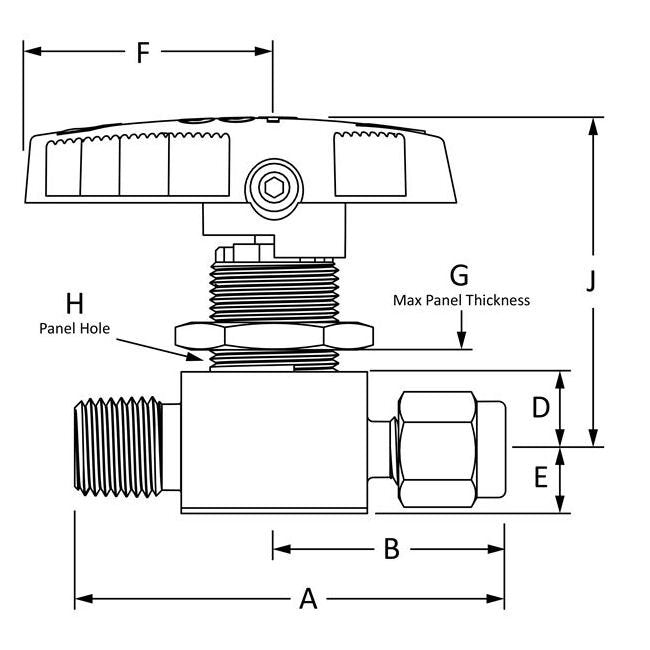

Product Specifications
Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Duolok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
