Brass Encapsulated Angle Ball Valves
Brass Encapsulated Angle Ball Valves
SKU:VAL-34a34d
Reliable Brass Encapsulated Angle Ball Valves for industrial use. FNPT connections, Cv 0.3, and durable Nylon handle with SS insert.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Brass Encapsulated Angle Ball Valves
$34.99
Quantity: 1
Claim Your Seller Account
Brass Encapsulated Angle Ball Valves
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial operations with precision and reliability using our Brass Encapsulated Angle Ball Valves from the EB Series. Crafted from high-quality brass, these 2-way Ball Valves feature FNPT connections, a Cv of 0.3, and Modified PTFE packing for secure sealing. With a working pressure of 2500 psig and a wide temperature range of -65 to 300 °F, these valves ensure consistent performance in diverse environments. The green Nylon handle with a Stainless Steel insert ensures durability and ease of operation, making these valves ideal for a range of applications.
Product Specifications

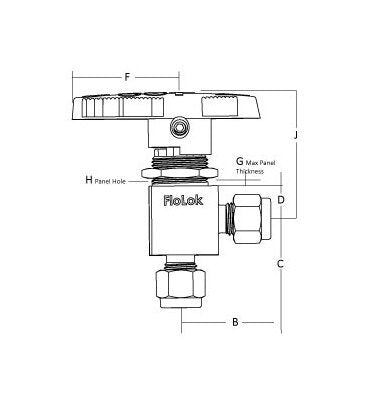

Dimensions B
0.81 in | 20.6 mm
Dimensions C
0.81 in | 20.6 mm
Dimensions D
0.34 in | 0.86 mm
Dimensions F
1.09 in | 27.7 mm
Dimensions G
1/4 in | 6.4 mm
Dimensions H
19/32 in | 15.1 mm
Dimensions J
1.45 in | 36.8 mm
Dimensions Panel Bore
19/32 in
Dimensions W
0.58 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/8-27
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/8-27
Specifications Connection 2 Type
FNPT
Specifications Cv
0.3
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.125 in | 3.18 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
42GA2PF-B
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
