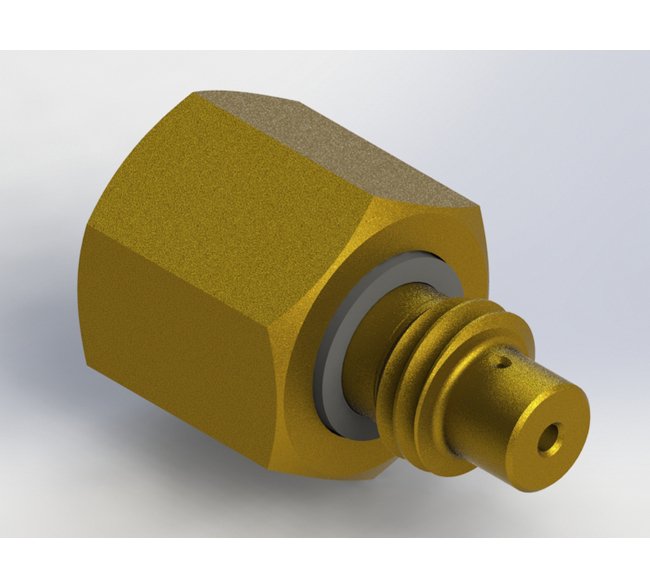

Brass Fixed Flow Ball Type UNF/UNC Adapter
Brass Fixed Flow Ball Type UNF/UNC Adapter
SKU:FLO-b4a2c7
Precision Brass Flow Control Adapter for reliable and controlled flow in various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Fixed Flow Ball Type UNF/UNC Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Brass Fixed Flow Ball Type UNF/UNC Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Fixed Flow Ball Type UNF/UNC Adapter is a reliable flow control solution suitable for various applications. Crafted with precision, this adapter features a stainless steel or buna-N ball and a precision orifice for controlled flow direction. With 10-32 UNF Male/Female connections, Viton seals, and a brass construction, it ensures durability and reliable performance. Operating at temperatures up to 180°F and pressures of 125 psig, this adapter meets stringent quality standards for long-term use.
Product Specifications
Dimensions Orifice Diameter
0.01 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0025
Flow Data Low Flow Coefficient
0.0025
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
10
Specifications Screened
None
Specifications Seal Material
Viton
