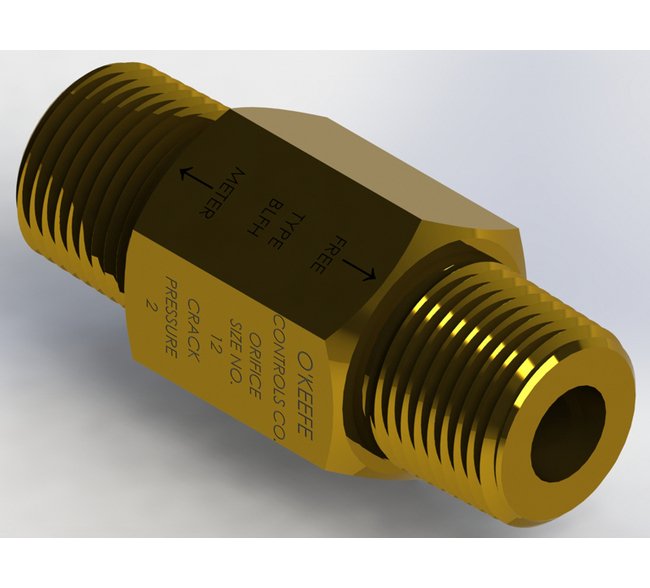

Brass Fixed Flow Control Ball NPT Nipple

Name: Brass Fixed Flow Control Ball NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-60e237
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-60e237

Enhance fluid control with our Brass Fixed Flow Control Ball NPT Nipple. Precision-engineered for reliable parallel flow regulation in liquids and gases.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance fluid control with our Brass Fixed Flow Control Ball NPT Nipple. This precision-engineered device offers reliable parallel flow regulation for liquids and gases. With a durable all-metal construction, selectable cracking pressure, and high-pressure capacity, it ensures long-lasting, tamper-proof performance. Measuring 1.4 inches in total length, featuring a 9/16-inch wide hex, and a 0.037-inch orifice diameter, this Brass Fixed Flow Control Ball NPT Nipple is ideal for applications requiring precise metered flow control. Suitable for a variety of settings, from industrial environments to institutional facilities, this product meets stringent quality standards for seamless integration into your systems.

Product Specifications

Dimensions Orifice Diameter

0.037 in

Dimensions Total Length

1.4 in

Dimensions Width Across Flats Hex

9/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

346 to 662 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 to 1.6 gpm

Specifications Assembly Forward Cv

0.112

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.081

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

0 psig

Specifications Cv Ratio Forward Cv Return Cv

3.61

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.031

Specifications Screened

None

Brass Fixed Flow Control Ball NPT Nipple
