Brass Fixed Flow Control Ball NPT Nipple, 0.0730 in Orifice
Brass Fixed Flow Control Ball NPT Nipple, 0.0730 in Orifice
SKU:FLO-892ab0
Optimize fluid flow control with our Brass Fixed Flow Control - Ball NPT Nipple. Precision engineering for ideal liquid/gas control.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Brass Fixed Flow Control Ball NPT Nipple, 0.0730 in Orifice
$69.99
Quantity: 1
Claim Your Seller Account
Brass Fixed Flow Control Ball NPT Nipple, 0.0730 in Orifice
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

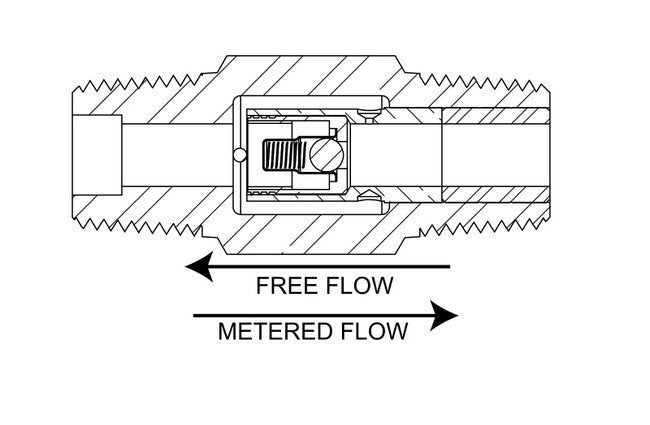

Enhance fluid control with our Brass Fixed Flow Control Ball NPT Nipple. This precision-engineered device features a ball check valve and precise orifice for controlled flow in liquids and gases. With a durable all-metal construction, choice of cracking pressure, and high-pressure capacity, this flow control ensures long-lasting, tamper-proof operation. Ideal for industrial and government applications, meeting stringent quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.0730 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.311
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
15 psig
Specifications Cv Ratio Forward Cv Return Cv
2.59
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
73
Specifications Orifice Cv Return
0.12
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
