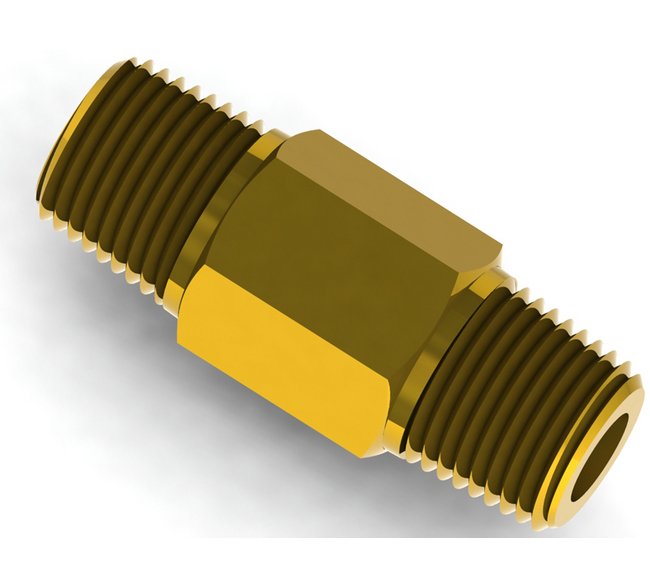

Brass Fixed Flow Control Ball NPT Nipple 1/4"
Brass Fixed Flow Control Ball NPT Nipple 1/4"
SKU:FLO-b76844
Get precise metered flow control with the Brass Fixed Flow Control Ball NPT Nipple. Ideal for liquids and gases, tamper-proof design for high-pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Brass Fixed Flow Control Ball NPT Nipple 1/4"
$49.99
Quantity: 1
Claim Your Seller Account
Brass Fixed Flow Control Ball NPT Nipple 1/4"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

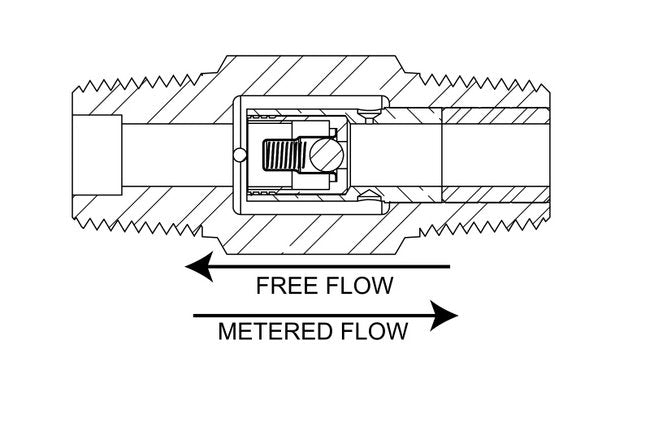

The Brass Fixed Flow Control Ball Type NPT Nipple offers precise metered flow control for both liquids and gases. Featuring an orifice diameter of 0.041 in, all-metal construction, and a tamper-proof design, this flow control ensures long-lasting, high-pressure capacity operation. With a maximum operating pressure of 2000 psig and a choice of cracking pressure, this product is ideal for applications requiring reliable and accurate flow control. Suitable for various industries, the NPT male to female connection makes installation easy and secure.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.041 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.229
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
6.03
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
41
Specifications Orifice Cv Return
0.038
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
