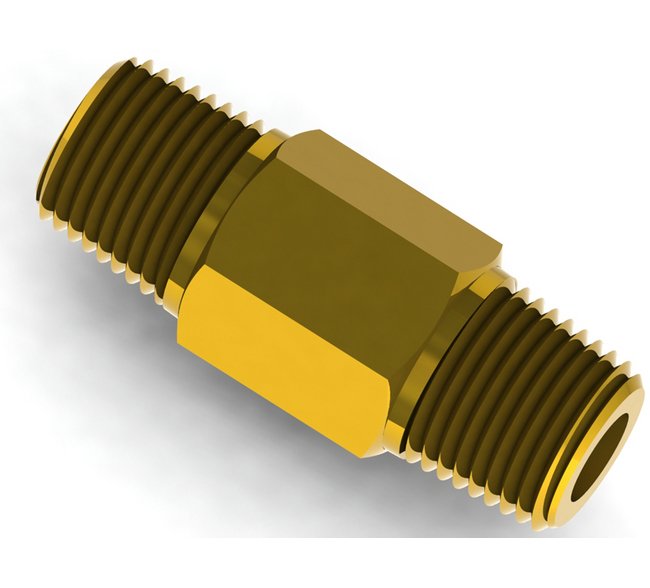

Brass Fixed Flow Control NPT Nipple
Brass Fixed Flow Control NPT Nipple
SKU:FLO-02b99c
Premium Brass Fixed Flow Control NPT Nipple for precise dual-direction flow control in liquids and gases.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Fixed Flow Control NPT Nipple
$39.99
Quantity: 1
Claim Your Seller Account
Brass Fixed Flow Control NPT Nipple
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

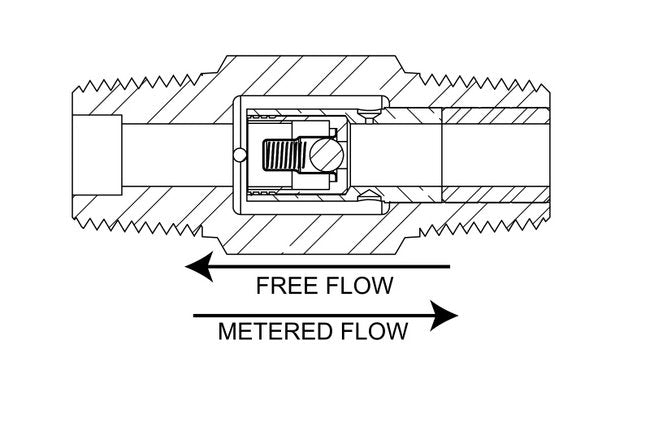

The Brass Fixed Flow Control NPT Nipple features a precision-engineered design with a ball check valve and orifice for accurate flow control in both directions. Constructed with high-quality Brass and 304 SS materials, this fixed flow control ensures long-lasting performance suitable for liquids and gases. With a tamperproof orifice and high-pressure capacity, it offers reliable metered flow and is compatible with 1/4" NPT connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.0890 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.371
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
2.06
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
89
Specifications Orifice Cv Return
0.18
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
