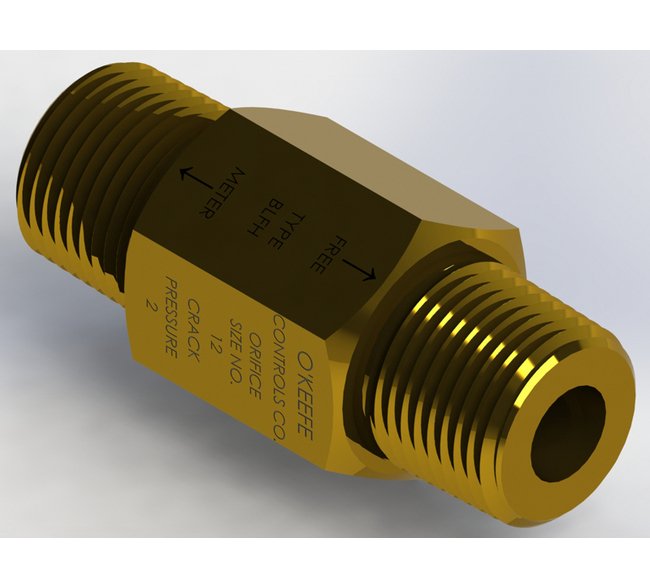

Precision metered flow with Brass Fixed Flow Controls - NPT Nipple for liquids & gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Brass Fixed Flow Controls - NPT Nipple for Metered Flow
$49.99
Quantity: 1
Claim Your Seller Account
Brass Fixed Flow Controls - NPT Nipple for Metered Flow
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

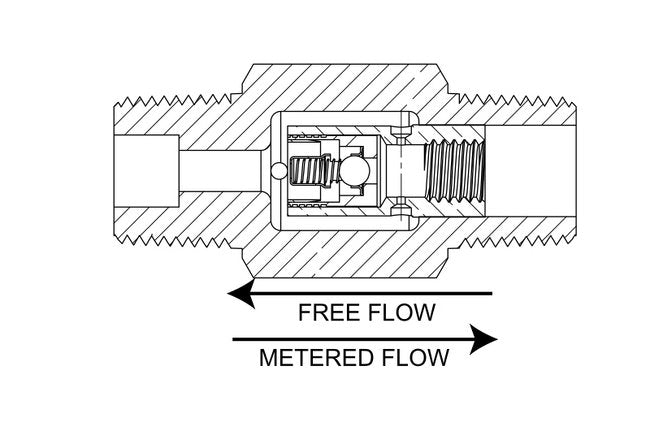

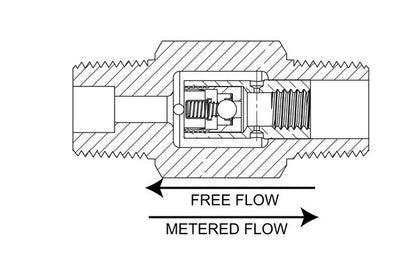

Enhance flow control precision with our Brass Fixed Flow Controls - NPT Nipple. Designed as a parallel arrangement of a ball check valve and a precision orifice, this product ensures free flow in one direction and metered flow in the other. Suitable for both liquids and gases, this all-metal construction features include tamperproof orifice, choice of cracking pressure, and high pressure capacity. With dimensions of Orifice Diameter: 0.023 in, Width Across Flats: 9/16 in, and Total Length: 1.4 in, this product guarantees long-life operation with a maximum operating pressure gauge of 200 psig. Experience superior air and water flow rates with Air Flow at 100 psig: 346 to 662 ft³/h and Water Flow at 100 psig: 0.8 to 1.6 gpm.
Product Specifications

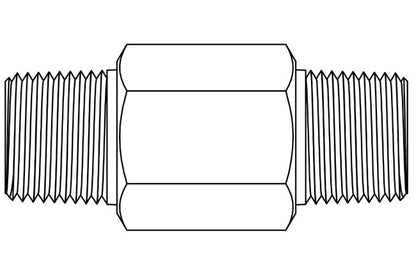

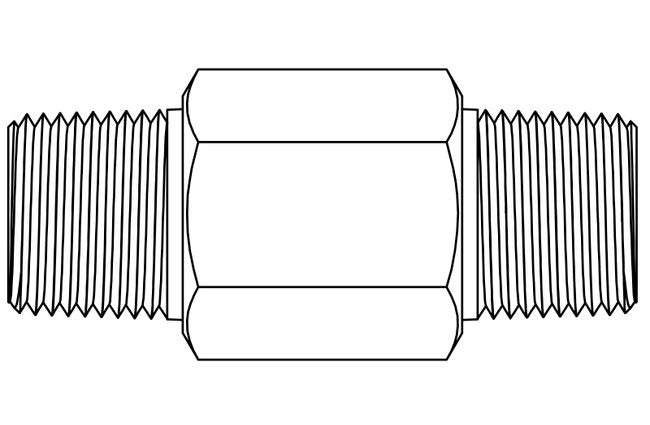

Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.093
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
7.75
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
23
Specifications Orifice Cv Return
0.012
Specifications Screened
None
