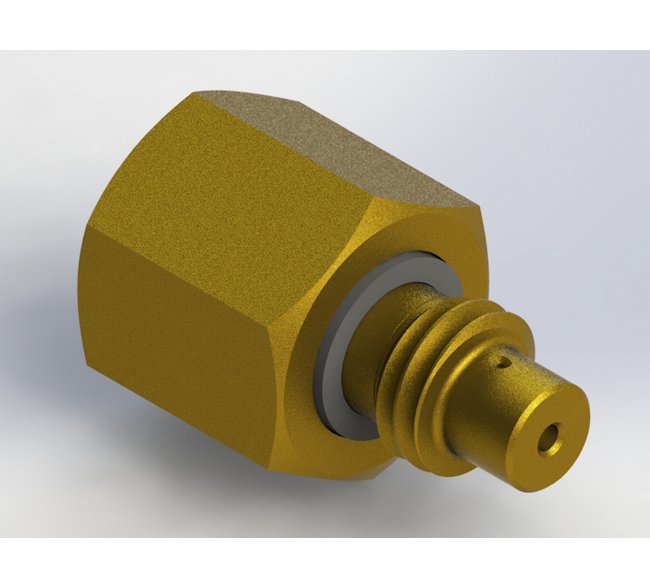

Brass Flow Control UNF/UNC Adapter
Brass Flow Control UNF/UNC Adapter
SKU:FLO-623a62
Control flow precisely with our Brass UNF/UNC Adapter. Durable materials, precision engineering, and reliable performance up to 125 psig.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Flow Control UNF/UNC Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Brass Flow Control UNF/UNC Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Flow Control UNF/UNC Adapter is a cost-effective solution featuring a stainless steel ball check valve and precision orifice for controlled flow direction. With a durable Brass construction, Viton seals, and Buna-N ball material, it offers precise flow regulation, low coefficient, and optimal performance. Designed with 10-32 UNF Male and Female connections, this adapter ensures reliable operation at up to 125 psig and 180°F. Ideal for industrial applications requiring precise flow management and compatibility with various systems.
Product Specifications
Dimensions Orifice Diameter
0.024 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.013
Flow Data Low Flow Coefficient
0.013
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
24
Specifications Screened
None
Specifications Seal Material
Viton
