Brass Forged Ball Valve - 1/4 inch Threaded End
Brass Forged Ball Valve - 1/4 inch Threaded End
SKU:VAL-91926d
High-performance Brass Forged Ball Valve for reliable and leak-free operation in various applications. CSA, UL, and FM certified.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Forged Ball Valve - 1/4 inch Threaded End
$39.99
Quantity: 1
Claim Your Seller Account
Brass Forged Ball Valve - 1/4 inch Threaded End
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior durability and performance with our Brass Forged Ball Valve. This valve features a two-piece forged brass body, maintenance-free double O-ring stem seals, blowout-proof stem with Ni Plating, and PTFE seats for leak-free operation. With a full port design and chrome-plated vented ball, it offers high pressure and temperature resistance, making it ideal for various applications. Certified by CSA, UL, and FM, this valve meets stringent industry standards ensuring reliability and longevity.
Product Specifications

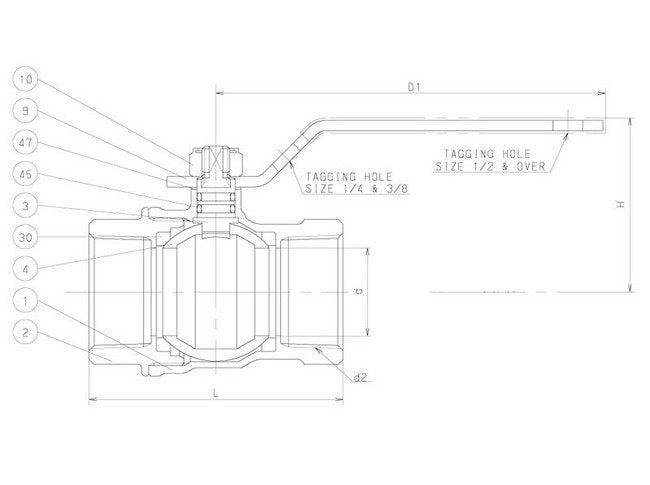

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
29.00
Specifications Carton Qty
120
Specifications Class
AKSZA
Specifications Dimension D
0.39
Specifications Dimension D1
2.76
Specifications Dimension D1 Max
0.381
Specifications Dimension D1 Min
0.377
Specifications Dimension D2
1/4 inches
Specifications Dimension H
1.46
Specifications Dimension L
1.65
Specifications Dimension L1
1.05
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
