Brass Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/8 Hose Barb
Brass Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/8 Hose Barb
SKU:SSP-e38a6a
Durable Brass Griplok Hose Barb Connector for secure 1/4 Tube x 1/8 Hose Barb connections. Ideal for various applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Brass Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/8 Hose Barb
$14.99
Quantity: 1
Claim Your Seller Account
Brass Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/8 Hose Barb
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your fluid handling needs with the Brass Griplok Hose Barb Connector, featuring a durable brass body construction. This straight connector ensures a secure connection between a 1/4-inch tube fitting and a 1/8-inch hose barb. With a temperature tolerance of -15 to 350 °F, this connector is suitable for a wide range of applications. The Griplok series guarantees reliability and ease of use, making it an ideal choice for both consumer and institutional settings.

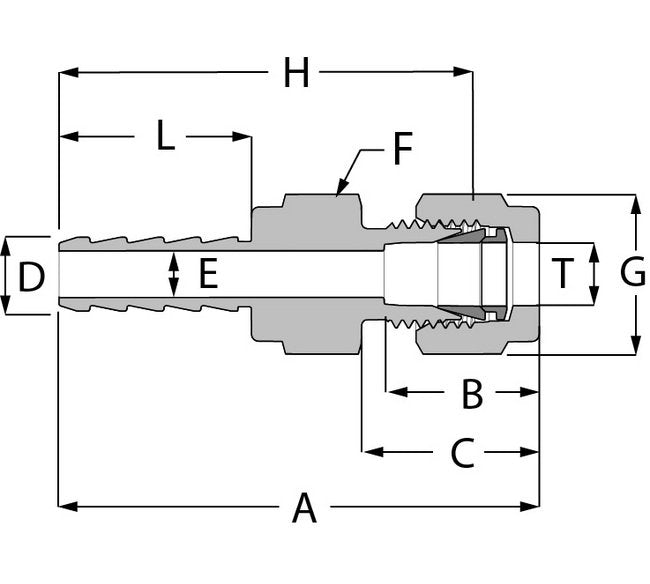

Product Specifications
Dimensions A
1.85 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.09 in
Dimensions F Hex Flat
7/16 in
Dimensions G
9/16 in
Dimensions H
1.56 in
Dimensions L
0.79 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
