Brass Griplok Male Connector 1/8 Tube x 1/4-18 MNPT
Brass Griplok Male Connector 1/8 Tube x 1/4-18 MNPT
SKU:FIT-af420d
Durable Brass Griplok Male Connector for secure tube fitting to NPT thread, ideal for industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Griplok Male Connector 1/8 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Brass Griplok Male Connector 1/8 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Griplok Male Connector is a reliable component designed for critical fluid transfer systems. Crafted from high-quality brass, it ensures durability and corrosion resistance, suitable for industrial applications. With precise dimensions of A: 1.46 in, C: 0.66 in, D: 0.56 in, and more, this straight-shaped connector guarantees a secure TF x MNPT connection. Compliant with federal procurement standards, GSA requirements, and FAR regulations, it meets the stringent criteria for institutional use.
Product Specifications

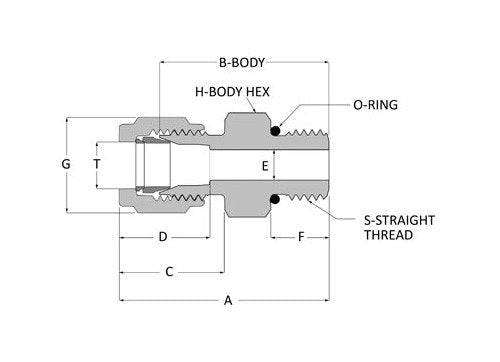

Dimensions A
1.46 in
Dimensions B
1.14 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F Minimum
0.56 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
