Brass Griplok Male Connector, 3/16 Tube Fitting x 1/4-18 MNPT
Brass Griplok Male Connector, 3/16 Tube Fitting x 1/4-18 MNPT
SKU:FIT-611f2a
Secure your instrumentation with the Brass Griplok Male Connector - a durable and precise essential for industry setups.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Griplok Male Connector, 3/16 Tube Fitting x 1/4-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Brass Griplok Male Connector, 3/16 Tube Fitting x 1/4-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

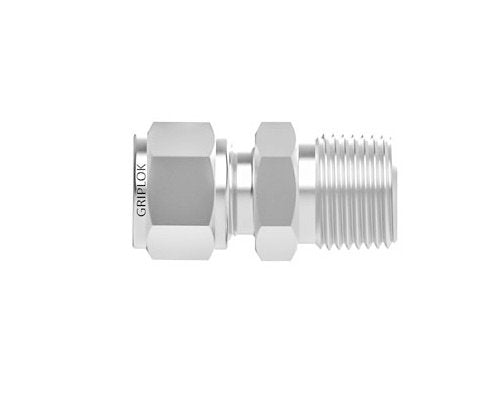

The Brass Griplok Male Connector is expertly crafted for precision. Designed with durable brass material, this connector ensures a secure tube fitting connection on one end and a 1/4-18 MNPT thread fitting on the other. With dimensions meeting industry standards, including a straight shape and optimal end connections, this Griplok series connector guarantees reliability and longevity in your instrumentation setups. Trust the Brass Griplok Male Connector for seamless integration and superior performance.

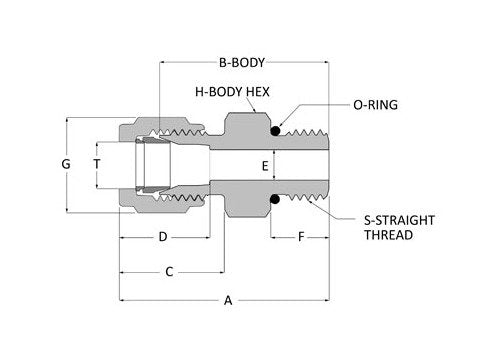

Product Specifications
Dimensions A
1.48 in
Dimensions B
1.17 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F Minimum
0.56 in
Dimensions G
1/2 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
3/16 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
