Brass Griplok O-Ring Male Connector - 1/4 TF x 1/8 MNPT
Brass Griplok O-Ring Male Connector - 1/4 TF x 1/8 MNPT
SKU:SSP-319598
Enhance your tube fittings with our durable Brass Griplok O-Ring Male Connector - perfect for secure and leak-free connections.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
Brass Griplok O-Ring Male Connector - 1/4 TF x 1/8 MNPT
$17.99
Quantity: 1
Claim Your Seller Account
Brass Griplok O-Ring Male Connector - 1/4 TF x 1/8 MNPT
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing connections with our Brass Griplok O-Ring Seal Male Connector. This straight connector features a Griplok Tube Fitting on one end and an O-Ring Seal Modified MNPT on the other, ensuring a secure and leak-free connection. Made from high-quality brass, this connector is durable and reliable for a wide range of industrial applications. With precise dimensions and AS568 O-Ring Uniform Size Number -111, this connector meets rigorous industry standards for performance and durability.

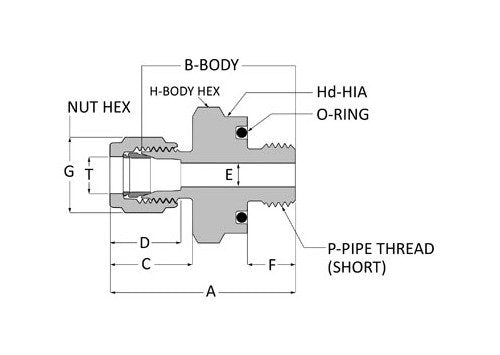

Product Specifications
Dimensions A
1.42 in
Dimensions B
1.09 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.28 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hd
0.74 in
Dimensions P
1/8 in
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-111
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
O-ring Seal Modified MNPT
Specifications End Connections
TF x O-ring Seal Modified MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
