Brass Griplok Reducing Union Tube Fitting, 3/16" to 1/16"
Brass Griplok Reducing Union Tube Fitting, 3/16" to 1/16"
SKU:SSP-162339
Premium Brass Griplok Reducing Tube Fitting for 3/16" to 1/16" tubing, ensures secure leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Griplok Reducing Union Tube Fitting, 3/16" to 1/16"
$24.99
Quantity: 1
Claim Your Seller Account
Brass Griplok Reducing Union Tube Fitting, 3/16" to 1/16"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your instrumentation setup with our Brass Griplok Reducing Union Tube Fitting. This precision-engineered fitting ensures a secure and leak-free connection between 3/16-inch and 1/16-inch tubing. Crafted from high-quality brass, it offers durability and corrosion resistance, ideal for industrial applications. The straight shape and Griplok design guarantee a tight and reliable fit, meeting the highest standards of performance and safety in fluid systems.
Ready to Grow Without Cash Flow Constraints?

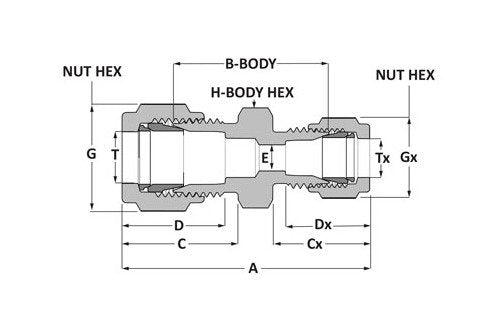

Product Specifications
Dimensions A
1.32 in
Dimensions B
0.86 in
Dimensions C
0.68 in
Dimensions Cx
0.43 in
Dimensions D
0.59 in
Dimensions Dx
0.34 in
Dimensions E
0.05 in
Dimensions G
1/2 in
Dimensions Gx
5/16 in
Dimensions H
7/16 in
Dimensions T
3/16 in
Dimensions Tx
1/16 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/16 in
Specifications Connection 2 Type
Tube Fitting
Specifications End Connections
TF x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
