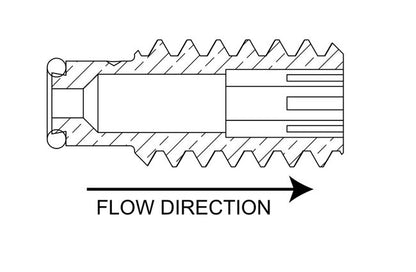

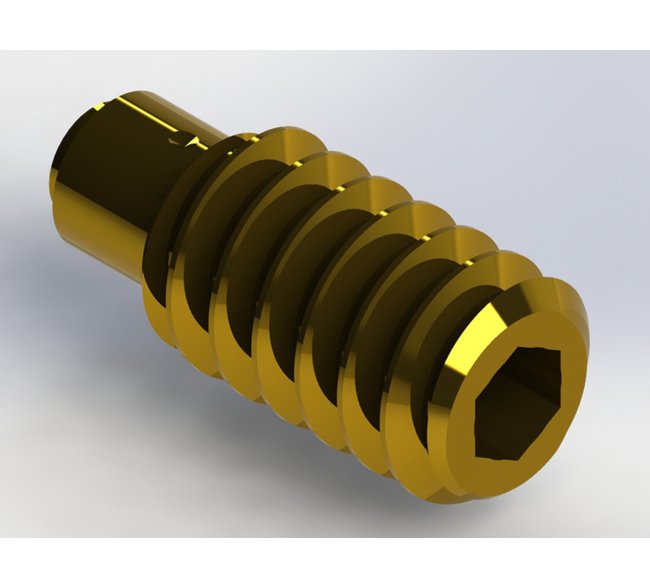

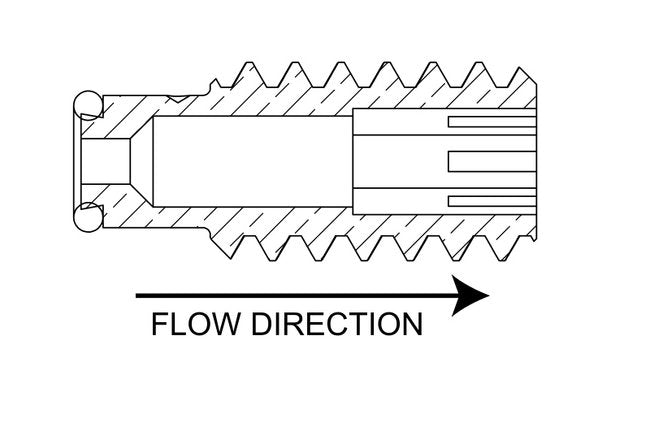

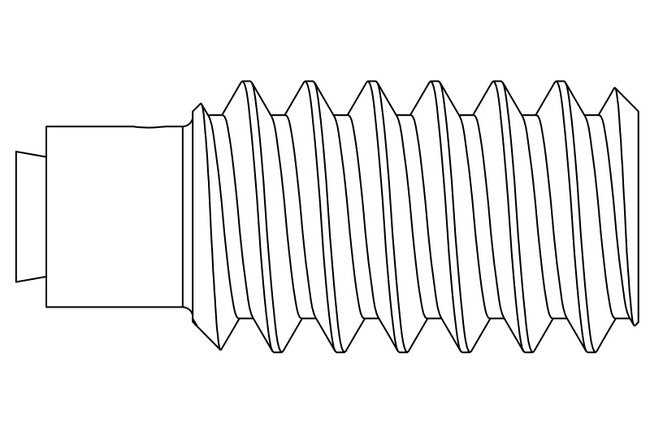

Enhance precision flow control with these Brass Inch Threaded Inserts featuring Viton O-Ring seals. Ideal for accurate liquid or gas flow in fittings, manifolds, and custom parts. With a maximum operating pressure of 200 psig and a maximum temperature of 300 °F, these inserts ensure reliable performance in demanding environments.
Product Specifications
Dimensions Orifice Diameter
0.024 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
6/32
Dimensions Total Length
0.310 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.26 | 5 psig: 7.48 | 10 psig: 11.0 | 15 psig: 13.6 | 20 psig: 16.1 | 25 psig: 18.3 | 30 psig: 20.7 | 40 psig: 25.4 | 50 psig: 30.1 | 60 psig: 34.7 | 70 psig: 39.2 | 80 psig: 43.9 | 90 psig: 48.5 | 100 psig: 53.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.54 | 5 psig (34.5 kPag): 3.53 | 10 psig (69.0 kPag): 5.18 | 15 psig (103.4 kPag): 6.43 | 20 psig (137.9 kPag): 7.58 | 25 psig (172.4 kPag): 8.65 | 30 psig (206.9 kPag): 9.75 | 40 psig (275.8 kPag): 12.0 | 50 psig (344.8 kPag): 14.2 | 60 psig (413.7 kPag): 16.4 | 70 psig (482.7 kPag): 18.5 | 80 psig (551.6 kPag): 20.7 | 90 psig (620.6 kPag): 22.9 | 100 psig (689.5 kPag): 25.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.61 | 20 In. Hg.: 6.61 | 30 In. Hg.: 6.61
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.12 | 20 In. Hg. (508 Mm. Hg.): 3.12 | 30 In. Hg. (762 Mm. Hg.): 3.12
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.87 | 10 In. Hg.: 6.12
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.30 | 10 In. Hg. (254 Mm. Hg.): 2.89
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.013 | 2 psig: 0.018 | 3 psig: 0.023 | 4 psig: 0.026 | 5 psig: 0.029 | 6 psig: 0.032 | 7 psig: 0.034 | 8 psig: 0.037 | 9 psig: 0.039 | 10 psig: 0.041 | 15 psig: 0.050 | 20 psig: 0.058 | 30 psig: 0.071 | 40 psig: 0.082 | 50 psig: 0.092 | 60 psig: 0.101 | 70 psig: 0.109 | 80 psig: 0.116 | 90 psig: 0.123 | 100 psig: 0.130
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.049 | 2 psig (13.8 kPag): 0.070 | 3 psig (20.7 kPag): 0.085 | 4 psig (27.6 kPag): 0.098 | 5 psig (34.5 kPag): 0.110 | 6 psig (41.4 kPag): 0.110 | 7 psig (48.3 kPag): 0.130 | 8 psig (55.2 kPag): 0.139 | 9 psig (62.1 kPag): 0.148 | 10 psig (69 kPag): 0.156 | 15 psig (103.4 kPag): 0.191 | 20 psig (137.9 kPag): 0.220 | 30 psig (206.9 kPag): 0.270 | 40 psig (275.8 kPag): 0.311 | 50 psig (344.8 kPag): 0.348 | 60 psig (413.7 kPag): 0.381 | 70 psig (482.7 kPag): 0.412 | 80 psig (551.6 kPag): 0.440 | 90 psig (620.6 kPag): 0.467 | 100 psig (689.5 kPag): 0.492
Specifications Connection A
6-32 UNC Threaded Insert O-ring seal
Specifications Cv
0.013
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.047 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
24
Specifications Screened
None
Specifications Seal Material
Viton
