Brass Manifold Coaxial Valve - 2/2 Electric Actuator, 24V
Brass Manifold Coaxial Valve - 2/2 Electric Actuator, 24V
SKU:ACC-932a14
High-performance Brass Manifold Coaxial Valve for precise control of gaseous, liquid, and contaminated media. With 2/2 design, Normally Closed switching function, and electric actuator.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Brass Manifold Coaxial Valve - 2/2 Electric Actuator, 24V
$189.99
Quantity: 1
Claim Your Seller Account
Brass Manifold Coaxial Valve - 2/2 Electric Actuator, 24V
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

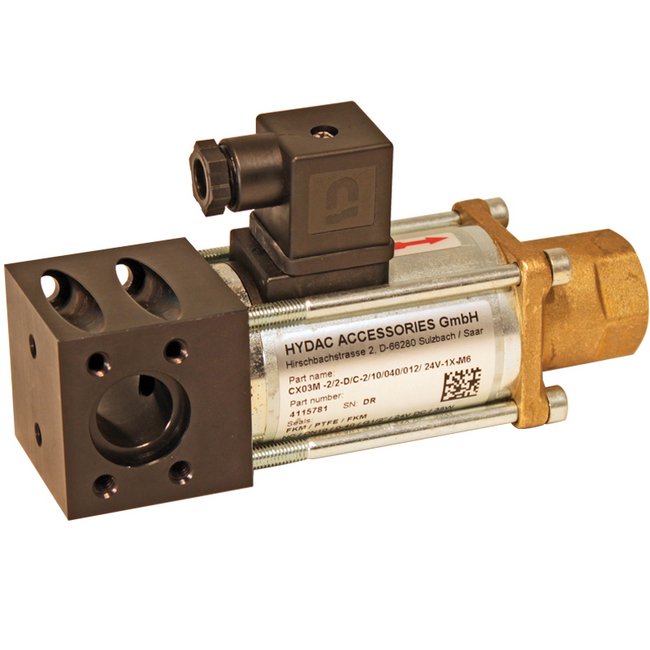

The Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/ 24V is a high-quality valve designed for precision control of gaseous, liquid, and contaminated media. With a maximum pressure of 40 bar and a temperature range from -10°C to 100°C, this valve ensures reliable performance in diverse environments. Featuring a Normally Closed switching function and IP65 protection with connector plug, it guarantees safe operation. This valve, with BSPP thread type and G 1/2 thread size, offers efficient flow direction as marked, making it ideal for industrial applications that demand accuracy and durability.
Product Specifications
Dimensions Dimension B
159.5 mm
Dimensions Height
6.27 in
Specifications 3 Day Lead Time
Yes
Specifications Actuator Type
Electric
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass (Standard)
Specifications Degree Of Protection
IP 65 When Fitted with Connector Plug
Specifications Division
ACCESSORIES
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
40 bar | 580 psi
Specifications Product
BALL VALVES
Specifications Product Group Family
PROCESS AND AUTOMATED VALVES
Specifications Switching Function
Normally Closed
Specifications Thread Size
G 1/2
Specifications Thread Size 2
G 1/2
Specifications Thread Type
BSPP
Specifications Thread Type 2
BSPP
Specifications Type
Manifold Coaxial Valve
Specifications Voltage
24 V
Specifications Weight
1.7 kg | 3.75 lb
