Brass Manifold Coaxial Valve CX Series

Brass Manifold Coaxial Valve CX Series

ACC-4ca7ad

High-quality Brass Manifold Coaxial Valve for gaseous, liquid, and contaminated media. Ideal for industrial applications.

$89.99
$89.99
Sale

Initiate Order

Brass Manifold Coaxial Valve CX Series

Brass Manifold Coaxial Valve CX Series

$89.99

Quantity: 1

Claim Your Seller Account

Brass Manifold Coaxial Valve CX Series

Brass Manifold Coaxial Valve CX Series

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

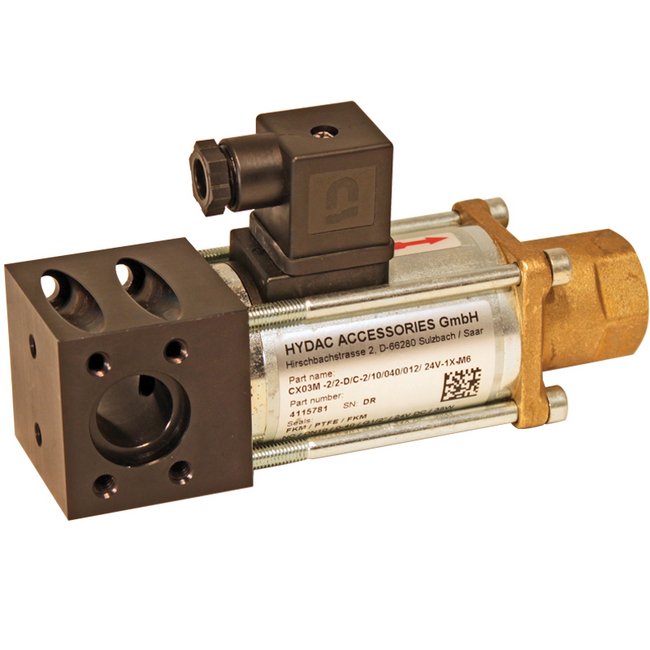

The Brass Manifold Coaxial Valve CX Series is a high-quality valve designed for gaseous, liquid, and contaminated media applications. With a maximum pressure of 120 bar and operating temperatures ranging from -10 to 100 degrees Celsius, this valve ensures reliable performance in various conditions. The normally closed switching function and pneumatic actuator type make it ideal for industrial settings where precision control is crucial. Its brass body material and durable construction ensure long-term durability and efficient operation. Suitable for 2/2 configurations with no orientation restrictions, this valve is a reliable choice for process and automated valve applications.

Product Specifications

Specifications 3 Day Lead Time
No
Specifications Actuator Type
Pneumatic
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass (Standard)
Specifications Division
ACCESSORIES
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
120 bar | 1740 psi
Specifications Product
BALL VALVES
Specifications Product Group Family
PROCESS AND AUTOMATED VALVES
Specifications Switching Function
Normally Closed
Specifications Thread Type
BSPP
Specifications Type
Manifold Coaxial Valve
