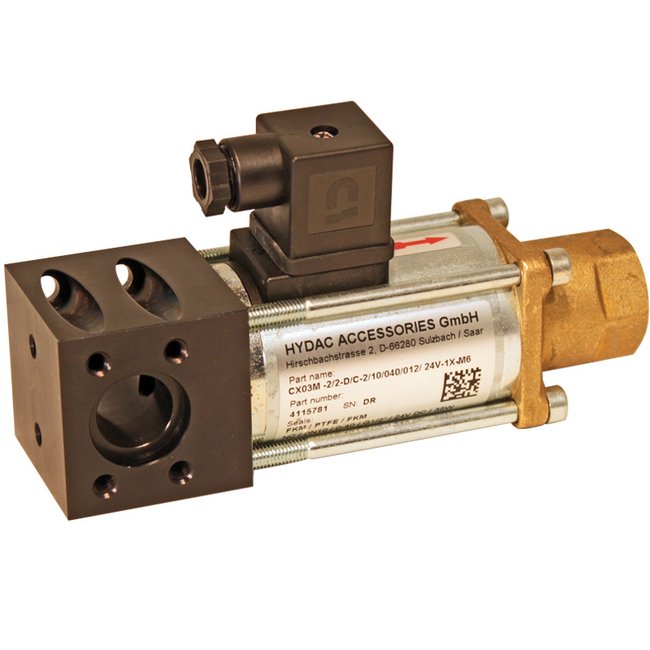

Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/24V-1X-M6
Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/24V-1X-M6
SKU:ACC-a61186
Durable Brass Manifold Coaxial Valve with Electric Actuator for Precise Control
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/24V-1X-M6
$189.99
Quantity: 1
Claim Your Seller Account
Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/24V-1X-M6
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Manifold Coaxial Valve CX03M-2/2-D/C-2/10/040/012/24V-1X-M6 is a high-performance valve suitable for various applications. Constructed with durable brass material, this valve offers reliable operation in diverse environments. With a maximum pressure capacity of 40 bar | 580 psi and a wide operating temperature range from -10°C to 100°C, this valve ensures efficient performance under demanding conditions. The electric actuator type and normally closed switching function provide precise control, while the IP 65 degree of protection enhances longevity. This valve, with no orientation restrictions for mounting, is a versatile solution for fluid control needs.
Product Specifications
Dimensions Dimension B
159.5 mm
Dimensions Height
6.27 in
Specifications 3 Day Lead Time
No
Specifications Actuator Type
Electric
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass (Standard)
Specifications Degree Of Protection
IP 65 When Fitted with Connector Plug
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
40 bar | 580 psi
Specifications Switching Function
Normally Closed
Specifications Thread Size
G 1/2
Specifications Thread Size 2
G 1/2
Specifications Thread Type
BSPP
Specifications Thread Type 2
BSPP
Specifications Type
Manifold Coaxial Valve
Specifications Voltage
24 V
Specifications Weight
1.7 kg | 3.75 lb
