Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

SSP-ce4d76

Premium Brass O-Ring Seal Griplok Connector for secure 3/8 tube fittings, industry standard compliant

$10.21
$10.21
Sale

Initiate Order

Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

$10.21

Quantity: 1

Claim Your Seller Account

Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

Brass O-Ring Seal Griplok Straight Thread Connector - 3/8 Tube Fitting x 3/8 O-ring

$10.21

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Brass O-Ring Seal Griplok Straight Thread Connector is a reliable solution for connecting 3/8-inch tube fittings with O-ring sealed straight threads. Crafted from high-quality brass, this connector offers durability and a secure seal. With precise dimensions and a straight shape, it ensures a tight connection. Ideal for industrial applications requiring leak-proof fittings, this Griplok connector exceeds performance expectations. Compliant with industry standards, this connector delivers quality and reliability for various installations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

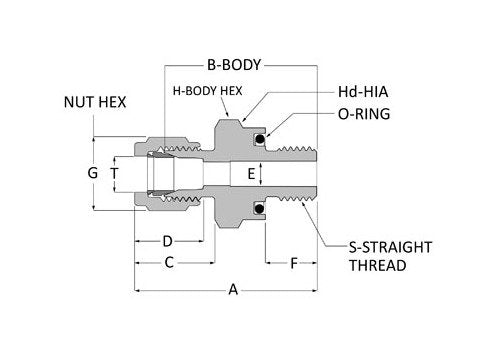

Dimensions A
1.72 in
Dimensions B
1.38 in
Dimensions C
0.81 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.47 in
Dimensions G
11/16 in
Dimensions H
15/16 in
Dimensions Hd
0.93 in
Dimensions S
9/16-18
Dimensions T
3/8 in
Specifications As568 O Ring Uniform Size Number
-113
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
10.21 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
