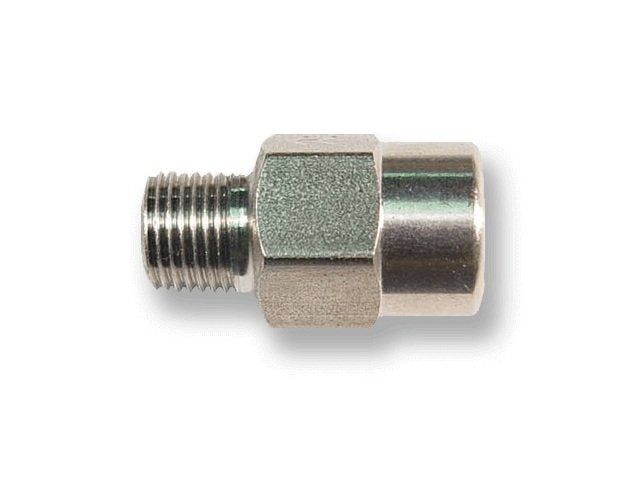

Brass Piston Check Valve - 1/8" FNPT x 1/8" MNPT
Brass Piston Check Valve - 1/8" FNPT x 1/8" MNPT
SKU:PIS-7fc580
High-performance Brass Piston Check Valve for secure sealing in high-pressure systems.
Regular price
$38.99
Regular price
Sale price
$38.99
Unit price
per
Initiate Order
Brass Piston Check Valve - 1/8" FNPT x 1/8" MNPT
$38.99
Quantity: 1
Claim Your Seller Account
Brass Piston Check Valve - 1/8" FNPT x 1/8" MNPT
$38.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PSCV Series Brass Piston Check Valve features a durable construction for a positive bubble-tight seal, suitable for high-pressure applications. With a cracking pressure of 1 psi, a maximum pressure rating of 500 psi, and a high-temperature limit of 250º F, this valve ensures reliable performance. Available with various spring options and seal materials, it offers versatility and quality assurance for industrial and institutional use.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Check Valve Type
Piston
Technical Specs Crack Pressure
1 psi
Technical Specs Material
Brass
Technical Specs Maximum Pressure
500 psi
Technical Specs Maximum Working Temperature
250 ºF
Technical Specs Series
PSCV
Technical Specs Thread Size
1/8 x 1/8 in
Technical Specs Thread Type
Female National Pipe Thread (FNPT) x Male National Pipe Thread (MNPT)
