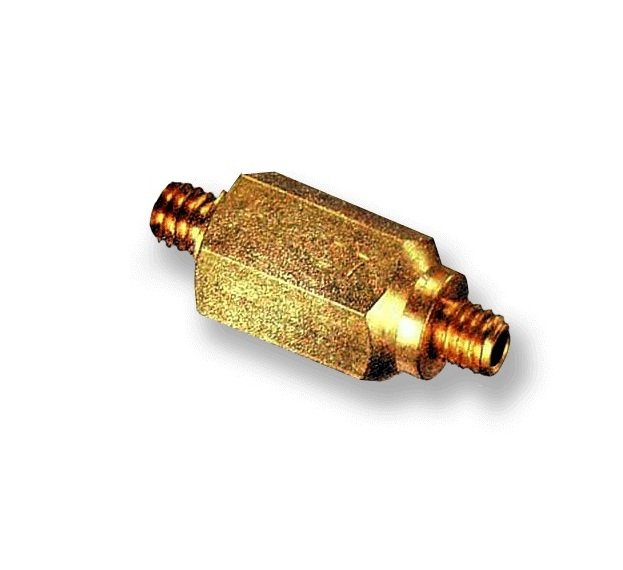

Brass Poppet Check Valve - CLCV Series 10-32, Male to Male
Brass Poppet Check Valve - CLCV Series 10-32, Male to Male
SKU:PIS-6aa030
Premium Brass Poppet Check Valve for air and hydraulic systems, 10-32 Male to Male ports, 1000 psi max pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Poppet Check Valve - CLCV Series 10-32, Male to Male
$29.99
Quantity: 1
Claim Your Seller Account
Brass Poppet Check Valve - CLCV Series 10-32, Male to Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Poppet Check Valve from the CLCV Series features 10-32 inch male to male ports, a durable Brass construction with a Nitrile seal and Stainless Steel spring. Designed for one-way flow control in air and hydraulic systems, it has a maximum working pressure of 1000 psi with a crack pressure of 1/2 psi. This valve operates within a temperature range of 32º F to 230º F, ensuring reliable performance in varying conditions. Ideal for industrial applications, the 1/8-inch variant maintains the same exceptional attributes while accommodating a maximum input pressure of 1000 psi. Contact our sales department for customized solutions.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Check Valve Type
Poppet
Technical Specs Material
Brass
Technical Specs Maximum Working Pressure
1000 psi
Technical Specs Series
CLCV
Technical Specs Temperature Range
32 to 230 ºF
Technical Specs Thread Size
10-32
Technical Specs Thread Type
Male to Male
