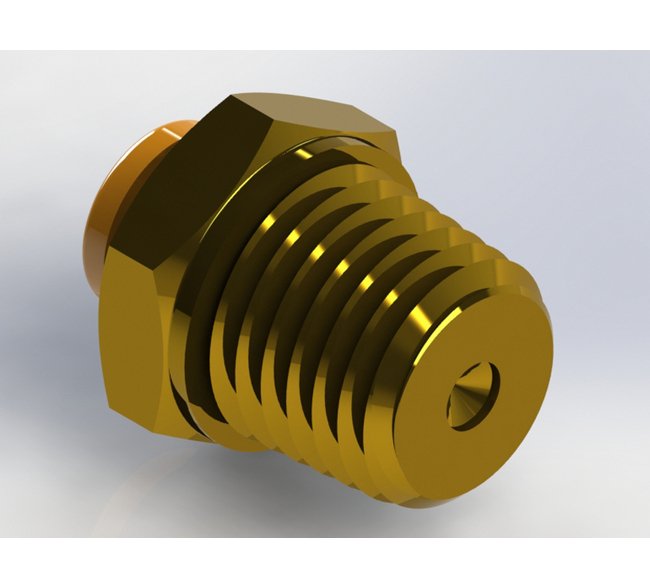

Brass Precision Metal Orifice Adapters, 1/4" NPT x Tube
Brass Precision Metal Orifice Adapters, 1/4" NPT x Tube
SKU:PRE-fe4379
Premium Brass Orifice Adapters for precise flow control in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Precision Metal Orifice Adapters, 1/4" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Brass Precision Metal Orifice Adapters, 1/4" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Precision Metal Orifice Push-On Tube Adapters are expertly designed for precise flow control in industrial applications. Crafted with Brass/Plastic materials and a Buna-N seal, these adapters offer a Nominal Orifice Size of 10 and a CV of 0.0025, ensuring reliable performance under a Maximum Operating Pressure of 140 psig. With dimensions including an Orifice Diameter of 0.0102 in and a Total Length of 0.830 in, these adapters provide consistent air and water flow rates. Ideal for meeting the stringent demands of government and institutional buyers, these adapters are screened-none and ensure dependable functionality.
Product Specifications
Dimensions Orifice Diameter
0.0102 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.593 | 5 psig: 1.37 | 10 psig: 1.97 | 15 psig: 2.48 | 20 psig: 2.92 | 25 psig: 3.37 | 30 psig: 3.81 | 40 psig: 4.68 | 50 psig: 5.55 | 60 psig: 6.40 | 70 psig: 7.27 | 80 psig: 8.12 | 90 psig: 8.96 | 100 psig: 9.81
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.280 | 5 psig (34.5 kPag): 0.65 | 10 psig (69.0 kPag): 0.93 | 15 psig (103.4 kPag): 1.17 | 20 psig (137.9 kPag): 1.38 | 25 psig (172.4 kPag): 1.59 | 30 psig (206.9 kPag): 1.80 | 40 psig (275.8 kPag): 2.21 | 50 psig (344.8 kPag): 2.62 | 60 psig (413.7 kPag): 3.02 | 70 psig (482.7 kPag): 3.43 | 80 psig (551.6 kPag): 3.83 | 90 psig (620.6 kPag): 4.23 | 100 psig (689.5 kPag): 4.63
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.20 | 20 In. Hg.: 1.20 | 30 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.566 | 20 In. Hg. (508 Mm. Hg.): 0.566 | 30 In. Hg. (762 Mm. Hg.): 0.566
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.86 | 10 In. Hg.: 1.10
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.406 | 10 In. Hg. (254 Mm. Hg.): 0.519
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0025 | 2 psig: 0.0035 | 3 psig: 0.0043 | 4 psig: 0.005 | 5 psig: 0.0056 | 6 psig: 0.0061 | 7 psig: 0.0066 | 8 psig: 0.0071 | 9 psig: 0.0075 | 10 psig: 0.0079 | 15 psig: 0.0097 | 20 psig: 0.0112 | 30 psig: 0.0137 | 40 psig: 0.0158 | 50 psig: 0.0177 | 60 psig: 0.0194 | 70 psig: 0.0209 | 80 psig: 0.0224 | 90 psig: 0.0237 | 100 psig: 0.0250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0095 | 2 psig (13.8 kPag): 0.0134 | 3 psig (20.7 kPag): 0.0164 | 4 psig (27.6 kPag): 0.0189 | 5 psig (34.5 kPag): 0.0212 | 6 psig (41.4 kPag): 0.0212 | 7 psig (48.3 kPag): 0.0250 | 8 psig (55.2 kPag): 0.0268 | 9 psig (62.1 kPag): 0.0284 | 10 psig (69 kPag): 0.0299 | 15 psig (103.4 kPag): 0.0367 | 20 psig (137.9 kPag): 0.0423 | 30 psig (206.9 kPag): 0.0518 | 40 psig (275.8 kPag): 0.0599 | 50 psig (344.8 kPag): 0.0669 | 60 psig (413.7 kPag): 0.0733 | 70 psig (482.7 kPag): 0.0792 | 80 psig (551.6 kPag): 0.0846 | 90 psig (620.6 kPag): 0.0898 | 100 psig (689.5 kPag): 0.0946
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0025
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
10
Specifications Screened
None
Specifications Seal Material
Buna-N
