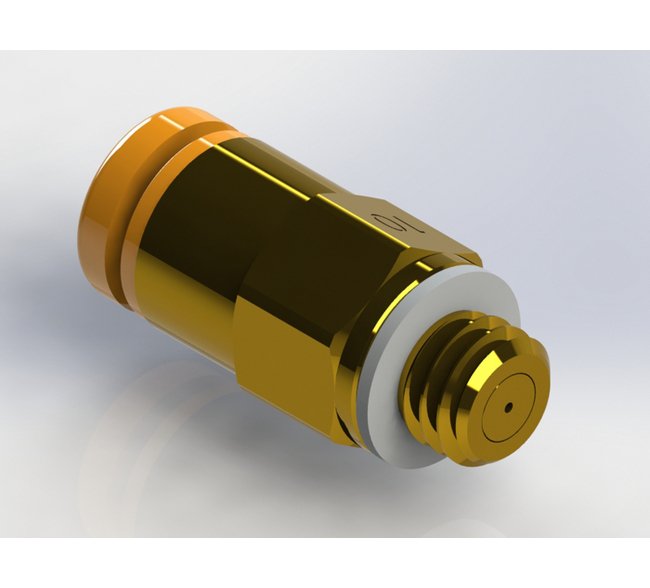

Brass Precision Orifice Adapters, 10-32 UNF x Tube
Brass Precision Orifice Adapters, 10-32 UNF x Tube
SKU:PRE-207c57
Enhance flow control precision with our durable Brass Precision Orifice Adapters. Ideal for air or water flow applications, these adapters ensure accurate flow rates.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Precision Orifice Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Brass Precision Orifice Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance flow control precision with our Brass Precision Orifice Adapters. Made of durable brass and Buna-N seal material, these adapters offer superior performance with a CV of 0.005 and withstand up to 140 psig. Ideal for air or water flow applications, the adapters ensure accurate flow rates and come with various connection options, including a 10-32 UNF Male and 1/8" OD Tube Push-Lock. Trusted for quality and reliability, these adapters meet stringent industry standards for precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
0.66 in
Dimensions Width Across Flats Hex
9/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.30 | 5 psig: 2.99 | 10 psig: 4.13 | 15 psig: 5.17 | 20 psig: 6.08 | 25 psig: 6.95 | 30 psig: 7.82 | 40 psig: 9.56 | 50 psig: 11.3 | 60 psig: 13.0 | 70 psig: 14.7 | 80 psig: 16.5 | 90 psig: 18.3 | 100 psig: 20.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.61 | 5 psig (34.5 kPag): 1.41 | 10 psig (69.0 kPag): 1.95 | 15 psig (103.4 kPag): 2.44 | 20 psig (137.9 kPag): 2.87 | 25 psig (172.4 kPag): 3.28 | 30 psig (206.9 kPag): 3.69 | 40 psig (275.8 kPag): 4.51 | 50 psig (344.8 kPag): 5.31 | 60 psig (413.7 kPag): 6.13 | 70 psig (482.7 kPag): 6.96 | 80 psig (551.6 kPag): 7.79 | 90 psig (620.6 kPag): 8.62 | 100 psig (689.5 kPag): 9.46
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.59 | 20 In. Hg.: 2.59 | 30 In. Hg.: 2.59
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.22 | 20 In. Hg. (508 Mm. Hg.): 1.22 | 30 In. Hg. (762 Mm. Hg.): 1.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.9 | 10 In. Hg.: 2.37
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.899 | 10 In. Hg. (254 Mm. Hg.): 1.12
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0050 | 2 psig: 0.0071 | 3 psig: 0.0087 | 4 psig: 0.0100 | 5 psig: 0.0112 | 6 psig: 0.0122 | 7 psig: 0.0132 | 8 psig: 0.0141 | 9 psig: 0.0150 | 10 psig: 0.0158 | 15 psig: 0.0194 | 20 psig: 0.0224 | 30 psig: 0.0274 | 40 psig: 0.0316 | 50 psig: 0.0354 | 60 psig: 0.0387 | 70 psig: 0.0418 | 80 psig: 0.0447 | 90 psig: 0.0474 | 100 psig: 0.0500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0189 | 2 psig (13.8 kPag): 0.0268 | 3 psig (20.7 kPag): 0.0328 | 4 psig (27.6 kPag): 0.0379 | 5 psig (34.5 kPag): 0.0423 | 6 psig (41.4 kPag): 0.0423 | 7 psig (48.3 kPag): 0.0501 | 8 psig (55.2 kPag): 0.0535 | 9 psig (62.1 kPag): 0.0568 | 10 psig (69 kPag): 0.0599 | 15 psig (103.4 kPag): 0.0733 | 20 psig (137.9 kPag): 0.0846 | 30 psig (206.9 kPag): 0.1037 | 40 psig (275.8 kPag): 0.1197 | 50 psig (344.8 kPag): 0.1338 | 60 psig (413.7 kPag): 0.1466 | 70 psig (482.7 kPag): 0.1584 | 80 psig (551.6 kPag): 0.1693 | 90 psig (620.6 kPag): 0.1796 | 100 psig (689.5 kPag): 0.1893
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.005
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
15
Specifications Screened
None
Specifications Seal Material
Buna-N
