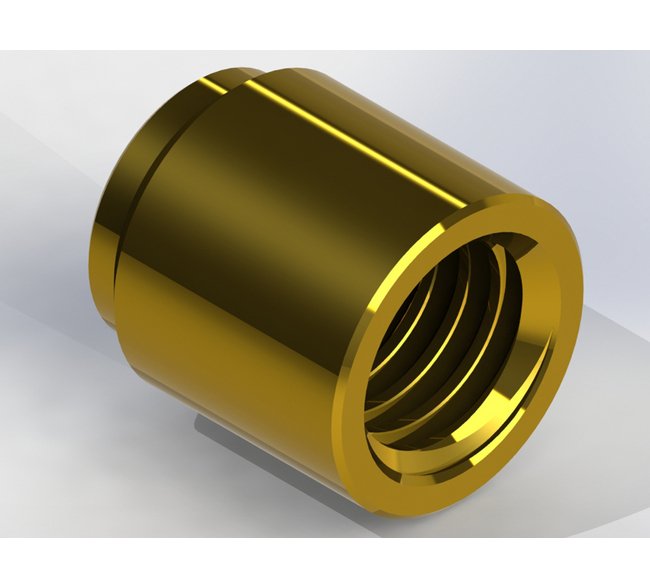

Brass Press-Fit Insert Orifices, 0.249" Precision Metal Orifices
$24.99
Quantity: 1
Claim Your Seller Account
Brass Press-Fit Insert Orifices, 0.249" Precision Metal Orifices
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision flow control with our brass press-fit insert orifices. Designed for accurate machining in fittings, manifolds, and custom parts, these orifices offer a choice of sizes and precise construction materials. With exceptional orifice diameter accuracy and a maximum operating pressure of 2000 psig, these orifices ensure reliable performance, making them ideal for fluid flow control in various applications.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.2495 in
Dimensions Minimum Outside Diameter
0.2490 in
Dimensions Orifice Diameter
0.039 in | 0.99 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.2475 to 0.2485 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.45 | 5 psig: 20.6 | 10 psig: 28.8 | 15 psig: 35.4 | 20 psig: 41.5 | 25 psig: 47.9 | 30 psig: 54.2 | 40 psig: 67.0 | 50 psig: 79.7 | 60 psig: 92.8 | 70 psig: 106 | 80 psig: 119 | 90 psig: 132 | 100 psig: 146
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.46 | 5 psig (34.5 kPag): 9.7 | 10 psig (69.0 kPag): 13.6 | 15 psig (103.4 kPag): 16.7 | 20 psig (137.9 kPag): 19.6 | 25 psig (172.4 kPag): 22.6 | 30 psig (206.9 kPag): 25.6 | 40 psig (275.8 kPag): 31.6 | 50 psig (344.8 kPag): 37.6 | 60 psig (413.7 kPag): 43.8 | 70 psig (482.7 kPag): 50 | 80 psig (551.6 kPag): 56.2 | 90 psig (620.6 kPag): 62.4 | 100 psig (689.5 kPag): 68.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 17.4 | 20 In. Hg.: 17.4 | 30 In. Hg.: 17.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.22 | 20 In. Hg. (508 Mm. Hg.): 8.22 | 30 In. Hg. (762 Mm. Hg.): 8.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 13.3 | 10 In. Hg.: 16.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.29 | 10 In. Hg. (254 Mm. Hg.): 7.85
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.033 | 2 psig: 0.047 | 3 psig: 0.057 | 4 psig: 0.066 | 5 psig: 0.074 | 6 psig: 0.081 | 7 psig: 0.087 | 8 psig: 0.093 | 9 psig: 0.099 | 10 psig: 0.104 | 15 psig: 0.128 | 20 psig: 0.148 | 30 psig: 0.181 | 40 psig: 0.209 | 50 psig: 0.233 | 60 psig: 0.256 | 70 psig: 0.276 | 80 psig: 0.295 | 90 psig: 0.313 | 100 psig: 0.330
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.125 | 2 psig (13.8 kPag): 0.177 | 3 psig (20.7 kPag): 0.216 | 4 psig (27.6 kPag): 0.250 | 5 psig (34.5 kPag): 0.279 | 6 psig (41.4 kPag): 0.306 | 7 psig (48.3 kPag): 0.331 | 8 psig (55.2 kPag): 0.353 | 9 psig (62.1 kPag): 0.375 | 10 psig (69 kPag): 0.395 | 15 psig (103.4 kPag): 0.484 | 20 psig (137.9 kPag): 0.559 | 30 psig (206.9 kPag): 0.684 | 40 psig (275.8 kPag): 0.79 | 50 psig (344.8 kPag): 0.883 | 60 psig (413.7 kPag): 0.968 | 70 psig (482.7 kPag): 1.045 | 80 psig (551.6 kPag): 1.117 | 90 psig (620.6 kPag): 1.185 | 100 psig (689.5 kPag): 1.249
Specifications Connection A
.249" Press-Fit Insert
Specifications Cv
0.033
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Nominal Orifice Size
39
Specifications Screened
None
