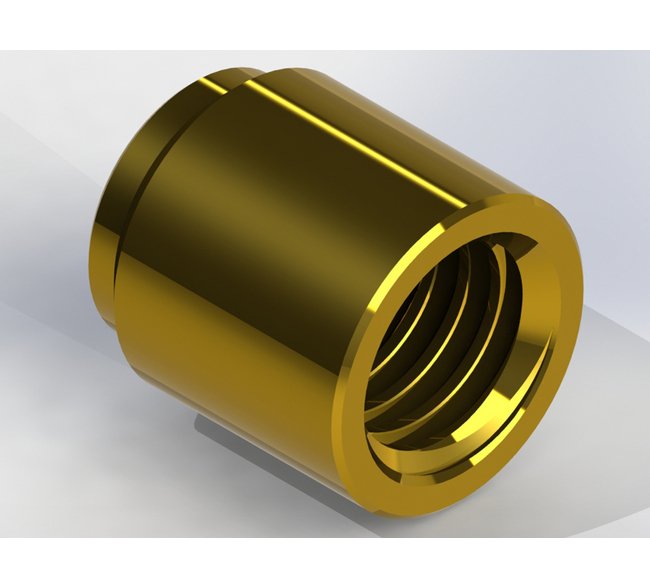

Brass Press-Fit Inserts - 0.249" OD Precision Metal Orifices
Brass Press-Fit Inserts - 0.249" OD Precision Metal Orifices
SKU:PRE-9f4045
Enhance precision and control with our Brass Press-Fit Inserts, crafted for accurate flow control of liquids or gases.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Press-Fit Inserts - 0.249" OD Precision Metal Orifices
$29.99
Quantity: 1
Claim Your Seller Account
Brass Press-Fit Inserts - 0.249" OD Precision Metal Orifices
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision and control with our Brass Press-Fit Inserts designed for accurate flow control of liquids or gases in fittings, manifolds, and custom assemblies. Crafted with precision, these inserts offer a range of orifice sizes, reliable brass construction, and exceptional dimensional accuracy meeting the stringent requirements of government and institutional procurement standards.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.2495 in
Dimensions Minimum Outside Diameter
0.2490 in
Dimensions Orifice Diameter
0.033 in | 0.84 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.2475 to 0.2485 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.42 | 5 psig: 14.4 | 10 psig: 21.1 | 15 psig: 26.1 | 20 psig: 30.3 | 25 psig: 34.5 | 30 psig: 39.0 | 40 psig: 47.7 | 50 psig: 56.4 | 60 psig: 65.0 | 70 psig: 73.9 | 80 psig: 82.6 | 90 psig: 91.5 | 100 psig: 101
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.03 | 5 psig (34.5 kPag): 6.80 | 10 psig (69.0 kPag): 9.98 | 15 psig (103.4 kPag): 12.3 | 20 psig (137.9 kPag): 14.3 | 25 psig (172.4 kPag): 16.3 | 30 psig (206.9 kPag): 18.4 | 40 psig (275.8 kPag): 22.5 | 50 psig (344.8 kPag): 26.6 | 60 psig (413.7 kPag): 30.7 | 70 psig (482.7 kPag): 34.9 | 80 psig (551.6 kPag): 39.0 | 90 psig (620.6 kPag): 43.2 | 100 psig (689.5 kPag): 47.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 12.1 | 20 In. Hg.: 12.1 | 30 In. Hg.: 12.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.72 | 20 In. Hg. (508 Mm. Hg.): 5.72 | 30 In. Hg. (762 Mm. Hg.): 5.72
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 9.15 | 10 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.32 | 10 In. Hg. (254 Mm. Hg.): 5.43
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.025 | 2 psig: 0.035 | 3 psig: 0.043 | 4 psig: 0.050 | 5 psig: 0.056 | 6 psig: 0.061 | 7 psig: 0.066 | 8 psig: 0.071 | 9 psig: 0.075 | 10 psig: 0.079 | 15 psig: 0.097 | 20 psig: 0.112 | 30 psig: 0.137 | 40 psig: 0.158 | 50 psig: 0.177 | 60 psig: 0.194 | 70 psig: 0.209 | 80 psig: 0.224 | 90 psig: 0.237 | 100 psig: 0.250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.095 | 2 psig (13.8 kPag): 0.134 | 3 psig (20.7 kPag): 0.164 | 4 psig (27.6 kPag): 0.189 | 5 psig (34.5 kPag): 0.212 | 6 psig (41.4 kPag): 0.212 | 7 psig (48.3 kPag): 0.250 | 8 psig (55.2 kPag): 0.268 | 9 psig (62.1 kPag): 0.284 | 10 psig (69 kPag): 0.299 | 15 psig (103.4 kPag): 0.367 | 20 psig (137.9 kPag): 0.423 | 30 psig (206.9 kPag): 0.518 | 40 psig (275.8 kPag): 0.599 | 50 psig (344.8 kPag): 0.669 | 60 psig (413.7 kPag): 0.733 | 70 psig (482.7 kPag): 0.792 | 80 psig (551.6 kPag): 0.846 | 90 psig (620.6 kPag): 0.898 | 100 psig (689.5 kPag): 0.946
Specifications Connection A
.249" Press-Fit Insert
Specifications Cv
0.025
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Nominal Orifice Size
33
Specifications Screened
None
