Brass Pressure Snubber - NPT Pipe Adapter
Brass Pressure Snubber - NPT Pipe Adapter
SKU:PRE-774c85
Precision Brass Pressure Snubber for stable pressure control in instruments and hydraulic systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Brass Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

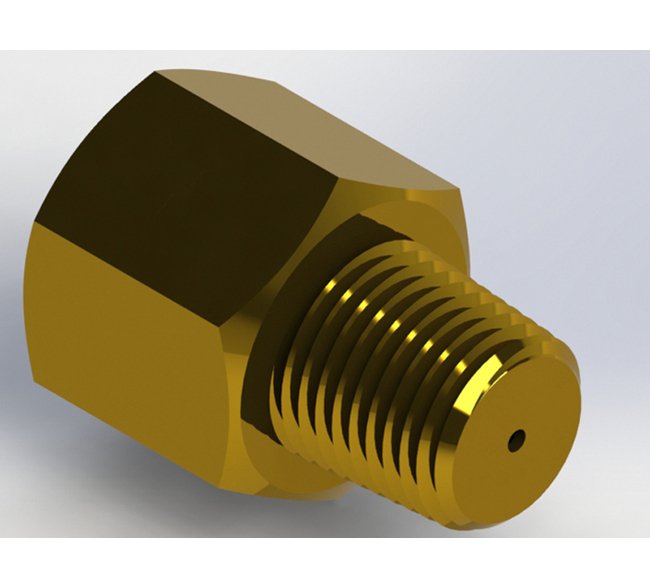

The Brass Pressure Snubber NPT Pipe Adapter is a precision-engineered in-line element designed to reduce rapid pressure fluctuations in pressure instruments and controls, ensuring accurate readings and prolonged instrument lifespan. This adapter features a small orifice that dampens shock and fluctuating pressure effects, with orifice sizes ranging from .004" to .020" to cater to various application needs. Constructed from high-quality brass material, this adapter offers a CV of 0.005 and can withstand a maximum operating pressure of 2000 psig. Suitable for a wide range of applications in pressure measurement and fluid control systems, this pressure snubber is a reliable solution for maintaining system stability and performance.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cv
0.005
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
