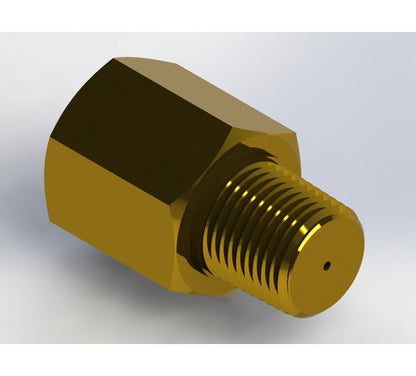

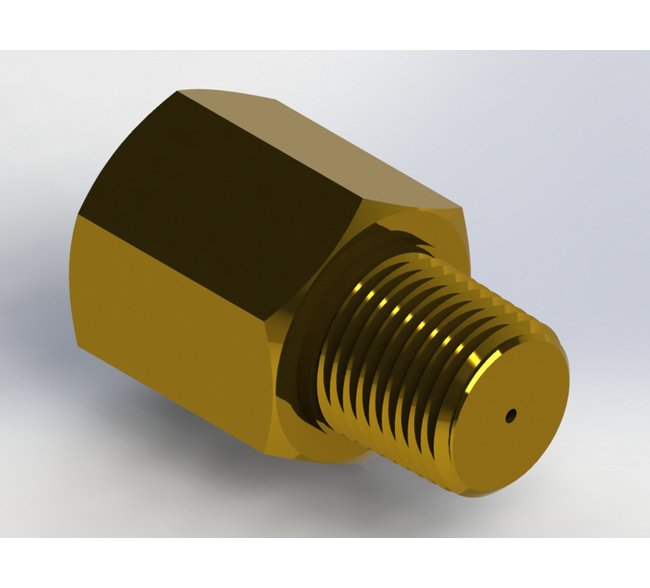

Brass Pressure Snubber NPT Pipe Adapter
Brass Pressure Snubber NPT Pipe Adapter
SKU:PRE-78f79f
High-quality Brass Pressure Snubber for precise pressure control and flow rate management in instruments and valves.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Claim Your Seller Account
Brass Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Pressure Snubber NPT Pipe Adapter is a precision-engineered in-line element designed to reduce rapid pressure fluctuations in a range of components, including Pressure Gauges, Measuring Instruments, and various Valves. Crafted from high-quality brass, it features an orifice diameter of 0.015in for optimal dampening effect. With a maximum operating pressure of 2000 psig, it ensures reliable performance in demanding environments. Ideal for controlling fluid flow rates in Cylinders and Actuators, this adapter offers versatility, durability, and precision in pressure management applications.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
1.520 in
Dimensions Width Across Flats Hex
7/8 in
Specifications Connection A
3/8" NPT Male
Specifications Connection B
3/8" NPT Female
Specifications Cv
0.005
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
