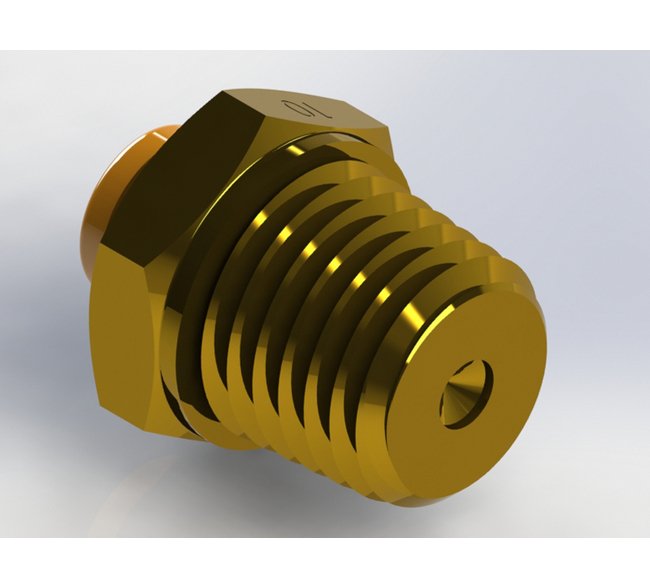

Brass Push-On Tube Adapters, 1/4" NPT x Tube
Brass Push-On Tube Adapters, 1/4" NPT x Tube
SKU:PRE-19a213
Durable Brass Push-On Tube Adapters for reliable industrial fluid control. Meets federal & industry standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Push-On Tube Adapters, 1/4" NPT x Tube
$39.99
Quantity: 1
Claim Your Seller Account
Brass Push-On Tube Adapters, 1/4" NPT x Tube
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

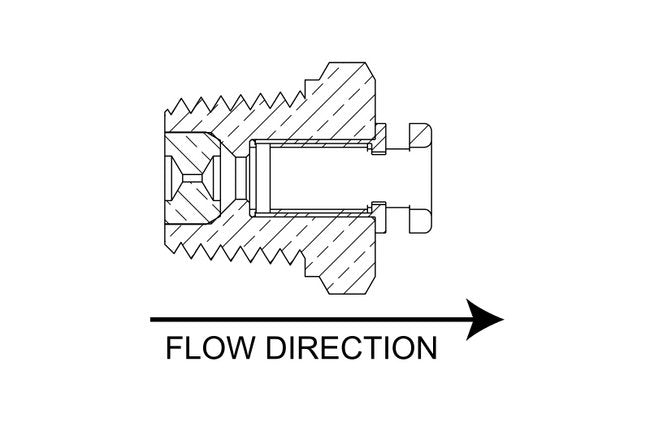

The Brass Push-On Tube Adapters are precision-engineered for seamless integration in industrial systems. Crafted from durable brass and Buna-N seal material, these adapters ensure reliable performance at pressures up to 140 psig. With a nominal orifice size of 38, CV of 0.032, and various flow rates for both air and water, these adapters guarantee precise control and efficient fluid handling. Compliance with federal procurement standards and industry-specific certifications make them a trusted choice for institutional applications.
Product Specifications

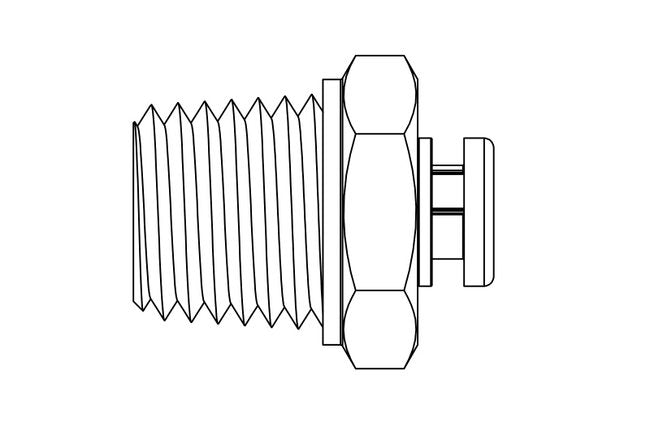

Dimensions Orifice Diameter
0.038 in
Dimensions Total Length
0.77 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.75 | 5 psig: 19.3 | 10 psig: 26.5 | 15 psig: 32.6 | 20 psig: 38.4 | 25 psig: 44.1 | 30 psig: 50.0 | 40 psig: 67.2 | 50 psig: 73.7 | 60 psig: 86.0 | 70 psig: 98.1 | 80 psig: 110 | 90 psig: 122 | 100 psig: 135
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.13 | 5 psig (34.5 kPag): 9.09 | 10 psig (69.0 kPag): 12.5 | 15 psig (103.4 kPag): 15.4 | 20 psig (137.9 kPag): 18.1 | 25 psig (172.4 kPag): 20.8 | 30 psig (206.9 kPag): 23.6 | 40 psig (275.8 kPag): 31.7 | 50 psig (344.8 kPag): 34.8 | 60 psig (413.7 kPag): 40.6 | 70 psig (482.7 kPag): 46.3 | 80 psig (551.6 kPag): 52.1 | 90 psig (620.6 kPag): 57.8 | 100 psig (689.5 kPag): 63.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 16.2 | 20 In. Hg.: 16.2 | 30 In. Hg.: 16.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.63 | 20 In. Hg. (508 Mm. Hg.): 7.63 | 30 In. Hg. (762 Mm. Hg.): 7.63
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 12.3 | 10 In. Hg.: 15.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.81 | 10 In. Hg. (254 Mm. Hg.): 7.29
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.032 | 2 psig: 0.045 | 3 psig: 0.055 | 4 psig: 0.064 | 5 psig: 0.072 | 6 psig: 0.078 | 7 psig: 0.085 | 8 psig: 0.091 | 9 psig: 0.096 | 10 psig: 0.101 | 15 psig: 0.124 | 20 psig: 0.143 | 30 psig: 0.175 | 40 psig: 0.202 | 50 psig: 0.226 | 60 psig: 0.248 | 70 psig: 0.268 | 80 psig: 0.286 | 90 psig: 0.304 | 100 psig: 0.320
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.121 | 2 psig (13.8 kPag): 0.171 | 3 psig (20.7 kPag): 0.210 | 4 psig (27.6 kPag): 0.242 | 5 psig (34.5 kPag): 0.271 | 6 psig (41.4 kPag): 0.297 | 7 psig (48.3 kPag): 0.320 | 8 psig (55.2 kPag): 0.343 | 9 psig (62.1 kPag): 0.363 | 10 psig (69 kPag): 0.383 | 15 psig (103.4 kPag): 0.469 | 20 psig (137.9 kPag): 0.542 | 30 psig (206.9 kPag): 0.663 | 40 psig (275.8 kPag): 0.766 | 50 psig (344.8 kPag): 0.857 | 60 psig (413.7 kPag): 0.938 | 70 psig (482.7 kPag): 1.013 | 80 psig (551.6 kPag): 1.083 | 90 psig (620.6 kPag): 1.149 | 100 psig (689.5 kPag): 1.211
Specifications Connection A
1/4" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.032
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
38
Specifications Screened
None
Specifications Seal Material
Buna-N
