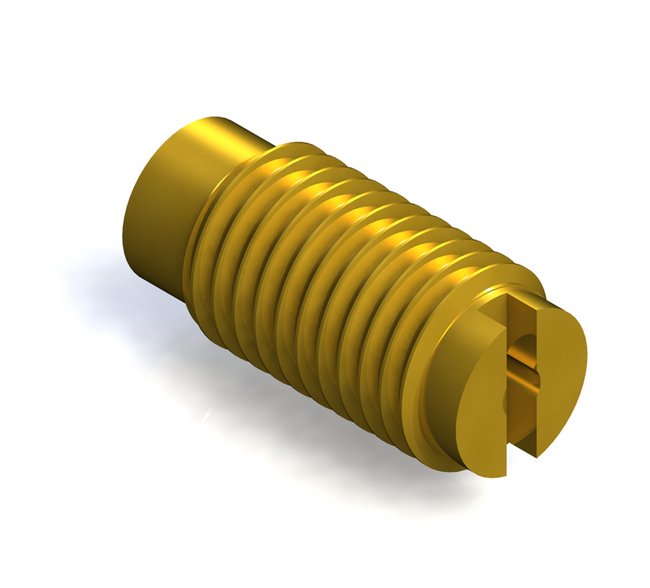

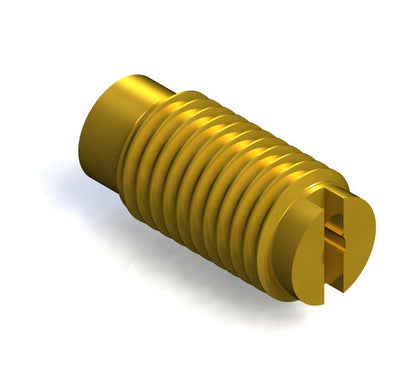

Brass Threaded Insert Ball Check Valve with Viton Seal

Name: Brass Threaded Insert Ball Check Valve with Viton Seal
Brand: O'Keefe Controls Co.
SKU: CHE-70f17b
Price: 49.99 USD
Availability: OutOfStock

SKU:CHE-70f17b

High-quality brass threaded ball check valve with Viton seal for reliable industrial flow control.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Brass Threaded Insert Ball Check Valve with Viton Seal is a high-quality, durable valve designed for reliable performance in industrial settings. Constructed with brass material and a 304 SS ball, this valve ensures effective flow control and features a maximum operating pressure of 200 psig. The Viton seal provides excellent sealing properties, with a maximum temperature of 300°F. Ideal for applications requiring precise control and minimal seat leakage, this valve meets stringent industry standards for performance and durability.

Product Specifications

Dimensions Thread Size

5/16-24

Dimensions Total Length

0.669 in

Specifications Ball Material

304 SS

Specifications Connection A

5/16-24 UNF Threaded Insert O-ring seal

Specifications Cv

0.081

Specifications Material

Brass

Specifications Maximum Operating Pressure

200 psig

Specifications Maximum Temperature

300 ÂºF

Specifications Screened

None

Specifications Seal Material

Viton

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male

Brass Threaded Insert Ball Check Valve with Viton Seal
