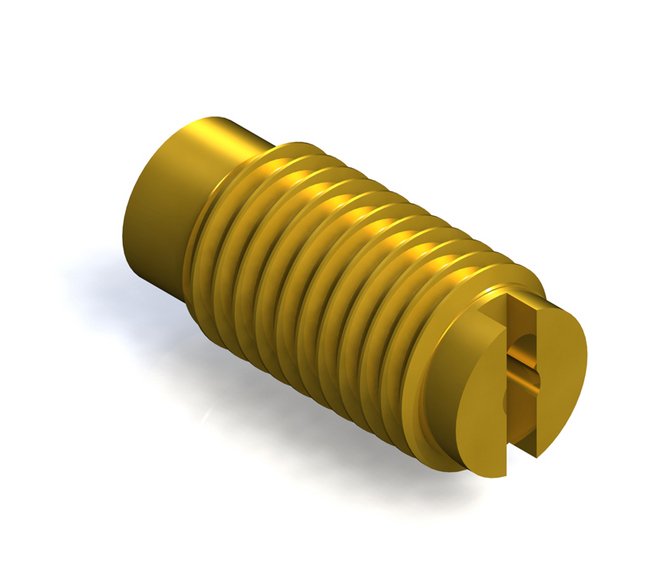

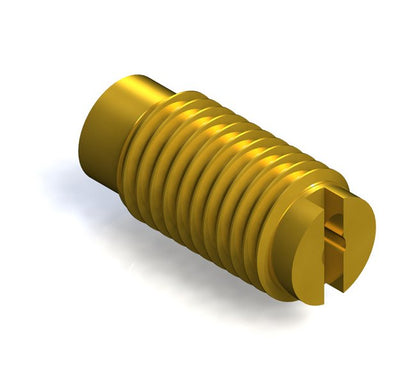

Brass Threaded Insert Ball Check Valves with Metal Seat
Brass Threaded Insert Ball Check Valves with Metal Seat
SKU:CHE-c574d1
Durable Brass Threaded Insert Ball Check Valves for high-pressure applications. Reliable performance and minimal leakage. Ideal for industrial and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Ball Check Valves with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Ball Check Valves with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Brass Threaded Insert Ball Check Valves with Metal Seat are designed for high-pressure applications up to 200 psig. Constructed with durable materials, including Brass, Viton seal, and 304 SS ball, these valves ensure reliable performance and minimal seat leakage. With a Max Temperature of 300°F and male thread connection, these valves provide secure and efficient flow control. Ideal for industrial and institutional use, meeting stringent procurement standards.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
