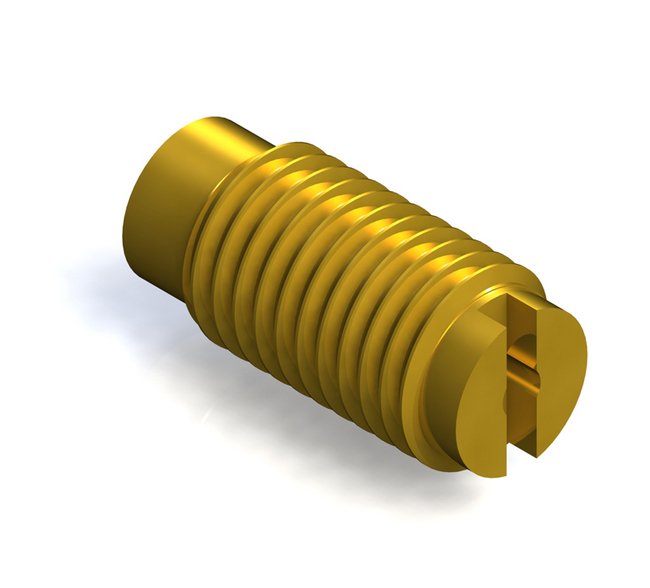

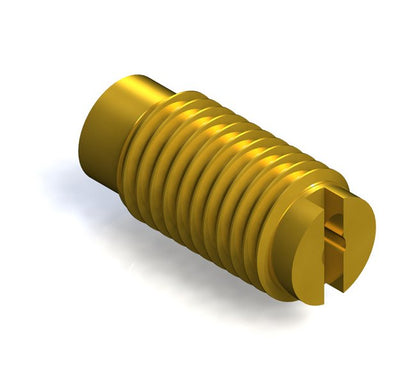

Brass Threaded Insert Ball Type Check Valve with Metal Seat
Brass Threaded Insert Ball Type Check Valve with Metal Seat
SKU:CHE-150fc9
High-quality Brass Check Valve with precise 304 SS Ball, ideal for fluid control applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Brass Threaded Insert Ball Type Check Valve with Metal Seat
$49.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Ball Type Check Valve with Metal Seat
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Threaded Insert Ball Type Check Valve with Metal Seat is a reliable solution for fluid control applications. Constructed with durable Brass material and a precision 304 SS Ball, this valve ensures secure and leak-free performance. With a CV of 0.081, it can handle pressures up to 200 psig and temperatures up to 300 °F. The male threaded connection with a 5/16-24 UNF Threaded Insert O-ring seal provides easy installation and a tight seal, while the maximum seat leakage of 20 SSCM at 25 psi ensures efficient operation. This valve is designed to meet the highest industry standards for quality and performance.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
