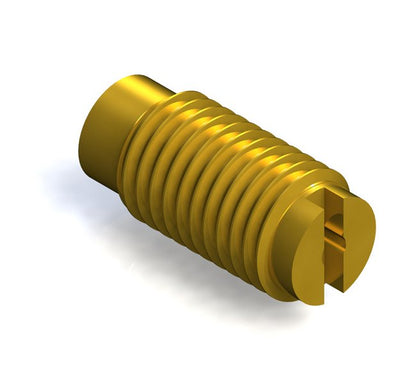

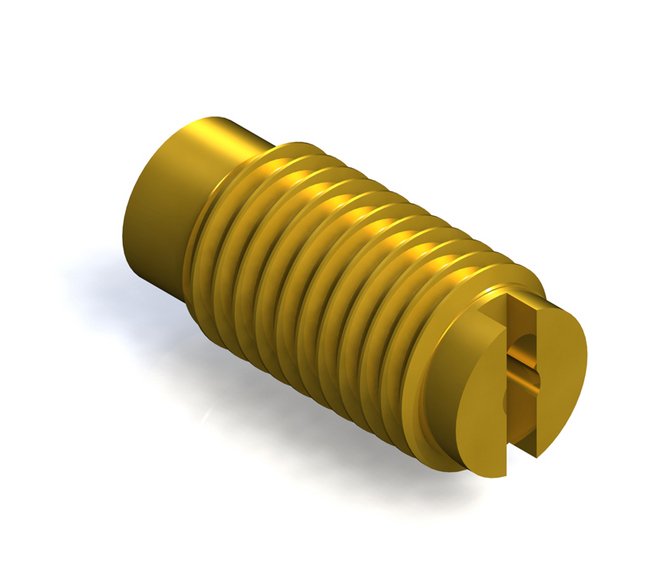

Brass Threaded Insert Ball Type Check Valve with Metal Seat
Brass Threaded Insert Ball Type Check Valve with Metal Seat
SKU:CHE-1ee181
High-performance Brass Check Valve for precise flow control. Brass construction, Viton seal, 304 SS ball, 0.081 CV, 300°F max temp, 200 psig max pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Ball Type Check Valve with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Ball Type Check Valve with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Brass Threaded Insert Ball Type Check Valve with Metal Seat is designed for reliable performance in various applications. Constructed with high-quality materials including Brass, Viton seal, and 304 SS ball, it offers a CV of 0.081 and can operate at temperatures up to 300°F with a maximum pressure of 200 psig. The male threaded connection features a 5/16-24 UNF Threaded Insert O-ring seal for secure installation. With minimal seat leakage and a compact design, this valve ensures efficient flow control and long-lasting durability, meeting stringent industry standards for quality and performance.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
