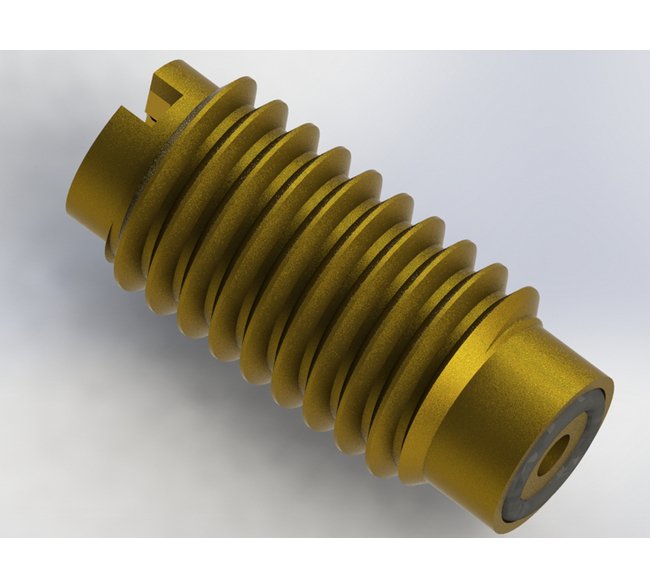

Brass Threaded Insert Check Valve, Ball Type - Metal Seat
Brass Threaded Insert Check Valve, Ball Type - Metal Seat
SKU:CHE-860130
Reliable Brass Threaded Insert Check Valve - Precise control, durable Brass construction, ideal for flow direction control
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valve, Ball Type - Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valve, Ball Type - Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

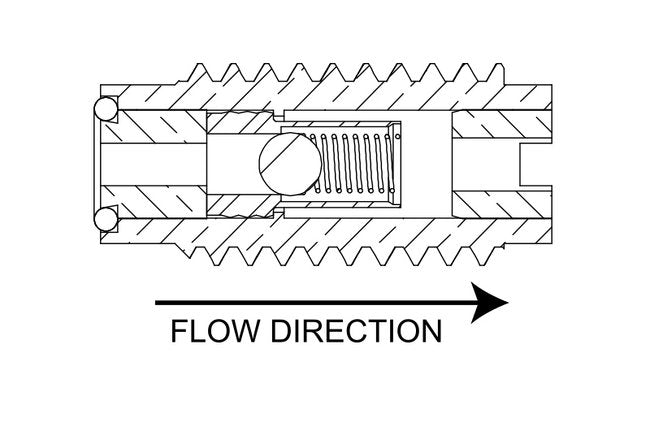

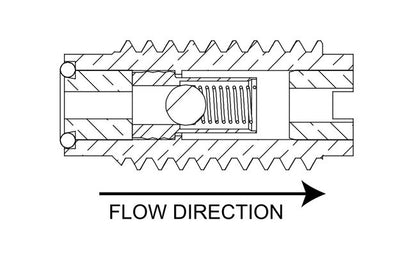

The Brass Threaded Insert Check Valve, Ball Type with Metal Seat is a reliable solution for controlling flow direction in your system. Crafted from durable Brass with a 304 SS Ball Material, this valve ensures long-lasting performance. With a CV of 0.02 and a maximum operating pressure of 125 psig, it offers precise control and efficient operation. The 10-32 UNF Threaded Insert O-ring seal provides a secure connection, while the compact dimensions make it easy to integrate into your setup. Trust in this valve for consistent performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
0 psid
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Thread
Male
