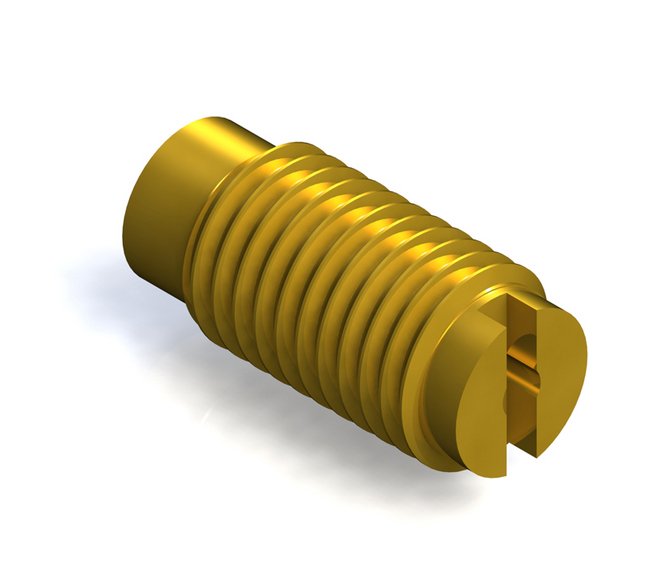

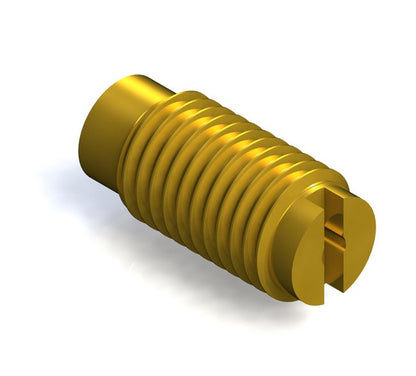

Brass Threaded Insert Check Valve with Metal Seat
Brass Threaded Insert Check Valve with Metal Seat
SKU:CHE-d23085
High-performance Brass Check Valve with Metal Seat for efficient flow control and durability. Meets institutional standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valve with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valve with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Threaded Insert Check Valve with Metal Seat is designed for reliable performance in demanding environments. Constructed with high-quality Brass and a 304 SS Ball, this valve ensures durability and efficient flow control. With a CV of 0.081, Maximum Temperature of 300 °F, and Maximum Operating Pressure of 200 psig, it meets stringent industry standards. The male Thread and 5/16-24 UNF Threaded Insert O-ring seal provide secure connections, minimizing leakage to a maximum of 20 SSCM at 25 psi. Ideal for institutional use requiring precision and longevity.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
