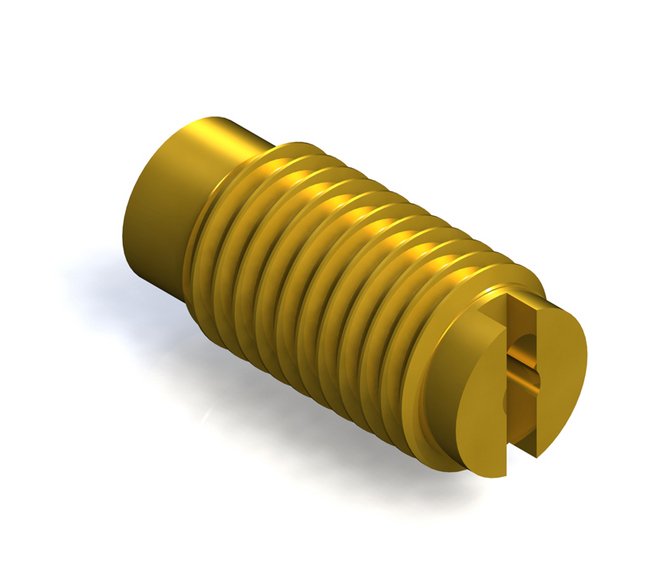

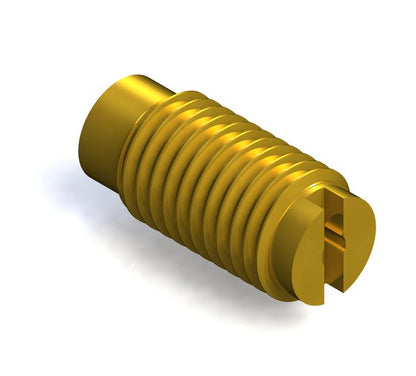

Brass Threaded Insert Check Valve with Viton Seal
Brass Threaded Insert Check Valve with Viton Seal
SKU:CHE-fd6820
High-quality Brass Threaded Insert Check Valve for precise flow control. Viton seal, 304 SS Ball, 200 psig max pressure.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valve with Viton Seal
$39.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valve with Viton Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid system with our high-quality Brass Threaded Insert Check Valve featuring a Viton seal for superior durability and reliability. Built with 304 SS Ball, this valve ensures a tight seal and minimal leakage. With a CV of 0.190 and a maximum temperature of 300 °F, it is designed to withstand pressures up to 200 psig. Perfect for industrial applications requiring precision flow control.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
