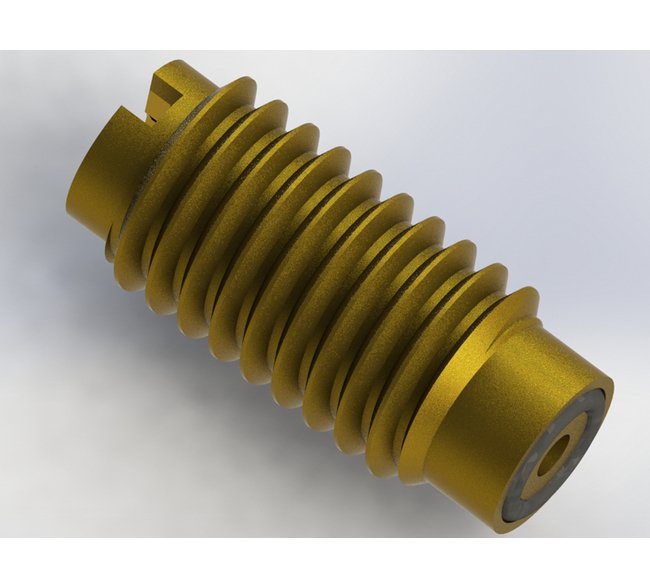

Brass Threaded Insert Check Valve with Viton Seal
Brass Threaded Insert Check Valve with Viton Seal
SKU:CHE-26e89e
Reliable Brass Threaded Insert Check Valve with Viton Seal, ideal for precise flow control in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valve with Viton Seal
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valve with Viton Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Threaded Insert Check Valve with Viton Seal is a reliable solution for controlling flow direction in various applications. Constructed with durable materials including Brass, Viton, and 304 SS, this valve ensures long-lasting performance. With a Cracking Pressure of 6 psid and a Maximum Operating Pressure of 125 psig, it offers precise control and safety. The metal-to-metal seat design enhances sealing efficiency, while the 10-32 UNF Threaded Insert with O-ring seal ensures easy installation and secure connections. Suitable for temperatures up to 150 °F, this check valve is a versatile choice for both consumer and institutional use.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
6 psid
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Thread
Male
