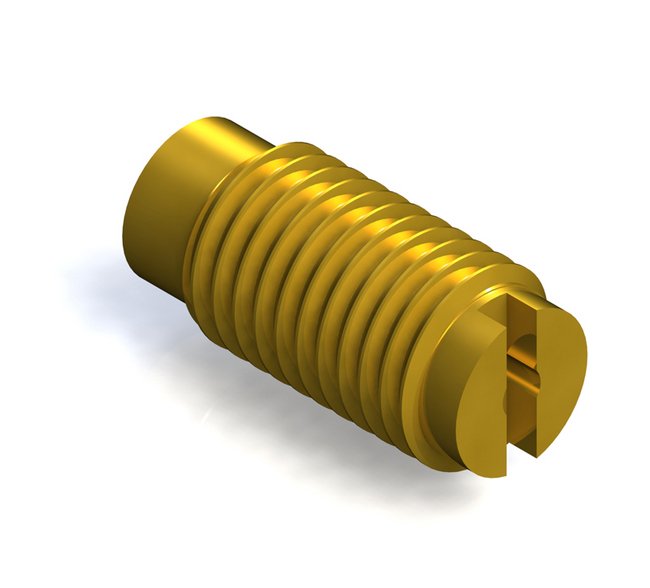

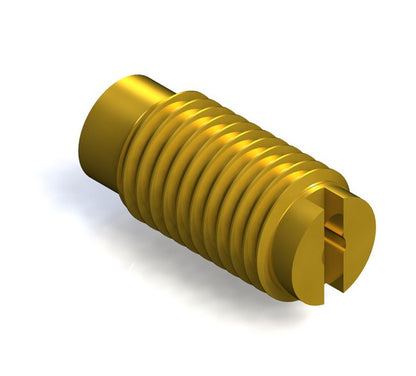

Brass Threaded Insert Check Valve with Viton Seal
Brass Threaded Insert Check Valve with Viton Seal
SKU:CHE-b79dd7
High-quality Brass Threaded Insert Check Valve with Viton Seal for reliable performance in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valve with Viton Seal
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valve with Viton Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Threaded Insert Check Valve with Viton Seal is a high-quality valve designed for a variety of applications. Constructed with durable brass material and a Viton seal, this valve ensures reliable performance and longevity. Its 304 SS ball material, maximum temperature of 300 °F, and maximum operating pressure of 200 psig make it suitable for demanding environments. The threaded insert with an O-ring seal provides a secure connection, and the valve offers minimal seat leakage of 20 SSCM at 25 psi differential. With a male thread size of 7/16-20 and a total length of 0.781 in, this valve is easy to install and efficient in operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
