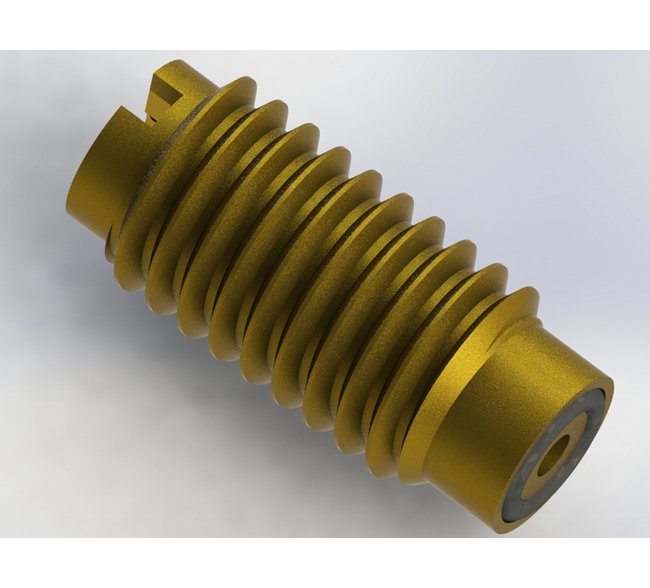

Brass Threaded Insert Check Valves
Brass Threaded Insert Check Valves
SKU:CHE-8aec03
Reliable Brass Threaded Insert Check Valves for backflow prevention. Durable construction with Viton seal & 304 SS Ball. Ideal for high-pressure applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valves
$34.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valves
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Brass Threaded Insert Check Valves with Metal seat offer reliable backflow prevention in various applications. Constructed with high-quality materials including Brass body, Viton seal, and 304 SS Ball for durability. Features a low CV of 0.02, suitable for pressures up to 125 psig, cracking pressure of 2 psid, and a max temperature of 150°F. The male 10-32 UNF Threaded Insert design provides secure connections. Ideal for industries requiring precise flow control and high-performance valves.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
2 psid
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Thread
Male
