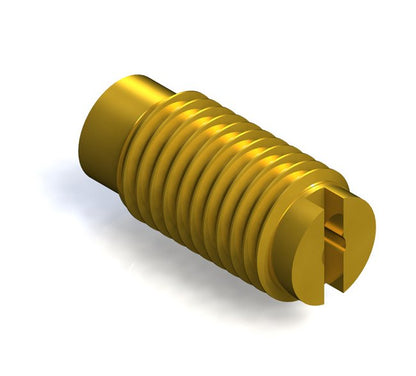

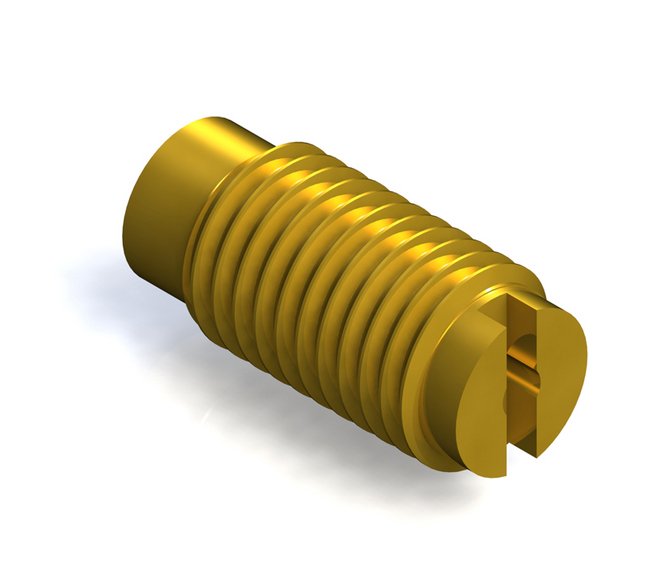

Brass Threaded Insert Check Valves with Viton Seal
Brass Threaded Insert Check Valves with Viton Seal
SKU:CHE-e7b448
High-performance Brass Check Valve with Viton Seal, ideal for industrial applications. Ensures precise flow control and durability.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Brass Threaded Insert Check Valves with Viton Seal
$32.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Insert Check Valves with Viton Seal
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Threaded Insert Check Valve with Viton Seal is a reliable solution designed for industrial applications requiring precise flow control. Crafted from high-quality brass with a Viton seal, this valve ensures robust performance and durability. With a maximum operating pressure of 200 psig and a CV of 0.081, it guarantees efficient and consistent operation even under challenging conditions. The precision-engineered 304 SS ball and male thread connection further enhance its functionality, making it a top choice for both consumer and institutional buyers seeking superior performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
