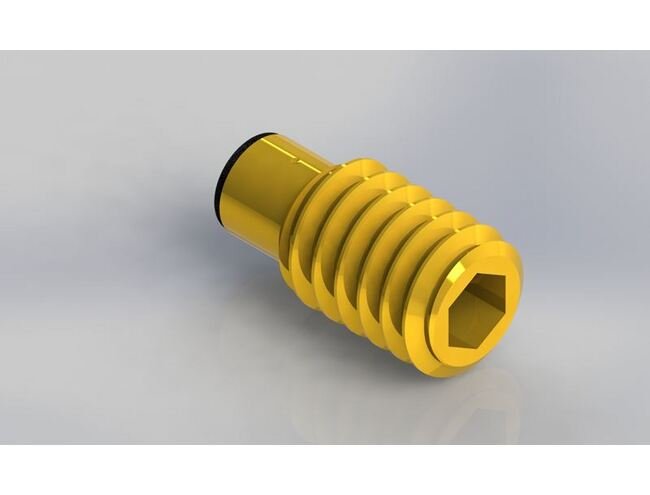

Brass Threaded Inserts Kit with O-Ring Seals
Brass Threaded Inserts Kit with O-Ring Seals
SKU:PRE-d1b8fb
Enhance flow control with our Brass Threaded Inserts Kit, featuring Viton O-Ring Seals for precise liquid or gas flow rate control.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Brass Threaded Inserts Kit with O-Ring Seals
$34.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Inserts Kit with O-Ring Seals
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

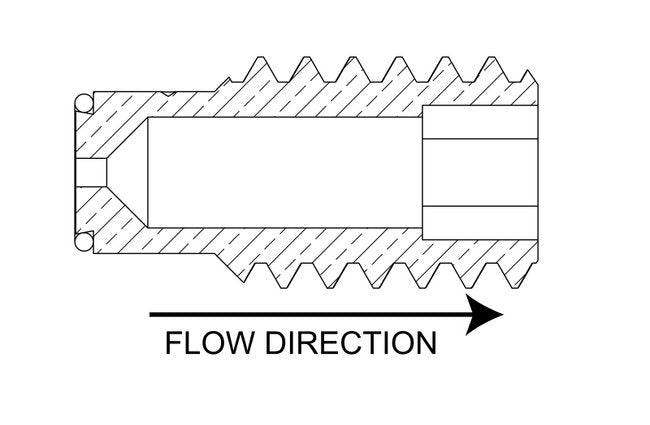

Upgrade your flow control systems with our Brass Threaded Inserts Kit featuring Viton O-Ring Seals. Designed for precision, this kit includes threaded inserts with reliable sealing capabilities, ideal for accurate flow rate control of liquids or gases. With a maximum temperature of 300°F and a maximum operating pressure of 200 psig, this kit ensures durability and performance in various industrial applications.
Product Specifications
Dimensions Orifice Diameter
0.041 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
1/4-20
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
1/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.90 | 5 psig: 22.5 | 10 psig: 31.4 | 15 psig: 38.6 | 20 psig: 45.3 | 25 psig: 52.3 | 30 psig: 59.3 | 40 psig: 73.3 | 50 psig: 87.5 | 60 psig: 102 | 70 psig: 117 | 80 psig: 131 | 90 psig: 146 | 100 psig: 164
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.67 | 5 psig (34.5 kPag): 10.6 | 10 psig (69.0 kPag): 14.8 | 15 psig (103.4 kPag): 18.2 | 20 psig (137.9 kPag): 21.4 | 25 psig (172.4 kPag): 24.7 | 30 psig (206.9 kPag): 28 | 40 psig (275.8 kPag): 34.6 | 50 psig (344.8 kPag): 41.3 | 60 psig (413.7 kPag): 48.1 | 70 psig (482.7 kPag): 55 | 80 psig (551.6 kPag): 61.9 | 90 psig (620.6 kPag): 68.9 | 100 psig (689.5 kPag): 77.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.8 | 20 In. Hg.: 18.8 | 30 In. Hg.: 18.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.87 | 20 In. Hg. (508 Mm. Hg.): 8.87 | 30 In. Hg. (762 Mm. Hg.): 8.87
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.5 | 10 In. Hg.: 18.0
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.82 | 10 In. Hg. (254 Mm. Hg.): 8.5
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.038 | 2 psig: 0.054 | 3 psig: 0.066 | 4 psig: 0.076 | 5 psig: 0.085 | 6 psig: 0.093 | 7 psig: 0.101 | 8 psig: 0.107 | 9 psig: 0.114 | 10 psig: 0.120 | 15 psig: 0.147 | 20 psig: 0.170 | 30 psig: 0.208 | 40 psig: 0.240 | 50 psig: 0.269 | 60 psig: 0.294 | 70 psig: 0.318 | 80 psig: 0.340 | 90 psig: 0.360 | 100 psig: 0.380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.144 | 2 psig (13.8 kPag): 0.203 | 3 psig (20.7 kPag): 0.249 | 4 psig (27.6 kPag): 0.288 | 5 psig (34.5 kPag): 0.322 | 6 psig (41.4 kPag): 0.352 | 7 psig (48.3 kPag): 0.381 | 8 psig (55.2 kPag): 0.407 | 9 psig (62.1 kPag): 0.432 | 10 psig (69 kPag): 0.455 | 15 psig (103.4 kPag): 0.557 | 20 psig (137.9 kPag): 0.643 | 30 psig (206.9 kPag): 0.788 | 40 psig (275.8 kPag): 0.910 | 50 psig (344.8 kPag): 1.017 | 60 psig (413.7 kPag): 1.114 | 70 psig (482.7 kPag): 1.203 | 80 psig (551.6 kPag): 1.287 | 90 psig (620.6 kPag): 1.365 | 100 psig (689.5 kPag): 1.438
Specifications Connection A
1/4"-20 UNC Threaded Insert O-ring seal
Specifications Cv
0.038
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.093 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
41
Specifications Screened
None
Specifications Seal Material
Viton
