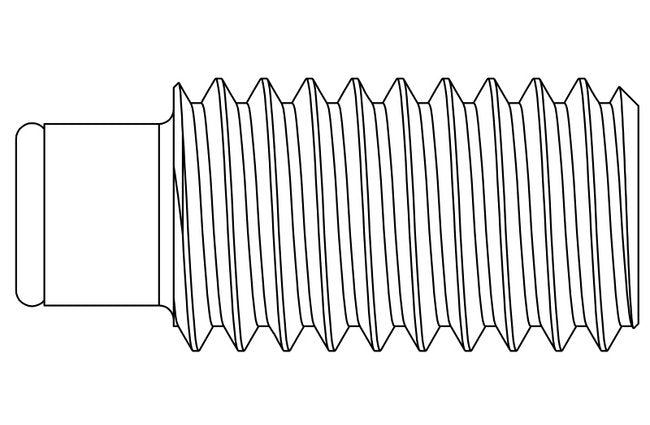

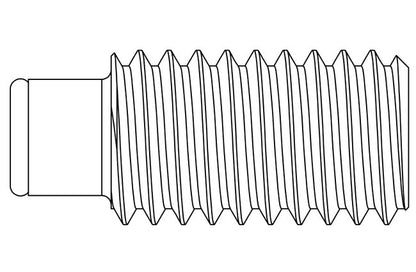

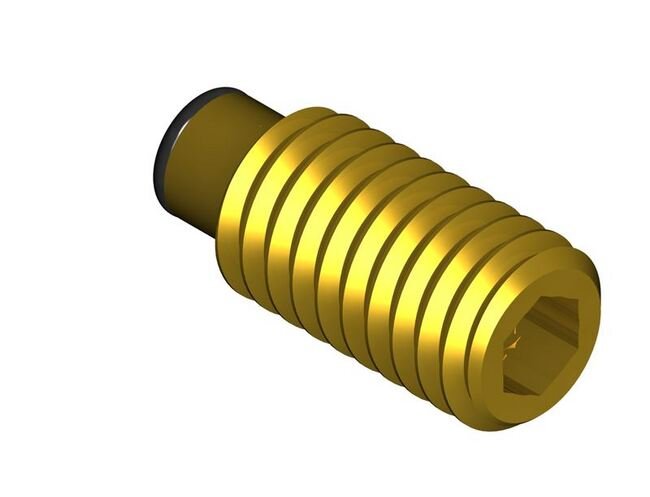

Brass Threaded Inserts with Nose Seals Assortment Pack
Brass Threaded Inserts with Nose Seals Assortment Pack
SKU:PRE-14c6bb
Achieve precise flow control with our Brass Threaded Inserts Assortment Pack for reliable performance in fittings and custom parts.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Threaded Inserts with Nose Seals Assortment Pack
$39.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Inserts with Nose Seals Assortment Pack
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

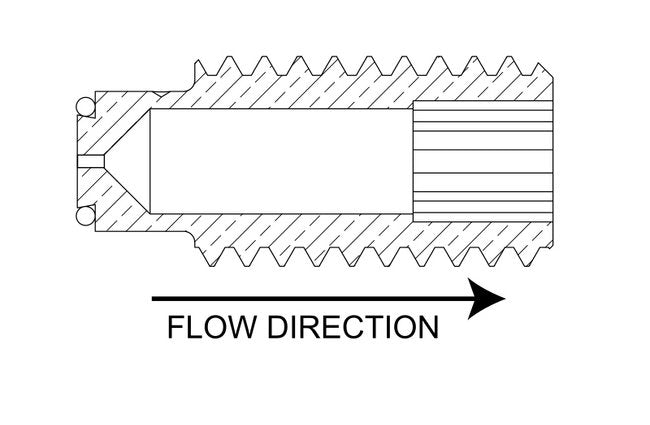

The Brass Threaded Inserts with Nose Seals Assortment Pack is designed for precise flow control of liquids or gases in fittings, manifolds, and custom parts. Made of durable brass with Viton o-ring seals, this assortment pack includes 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, and 5/16"-18 UNC threaded inserts. With maximum operating pressure of 200 psig and a maximum temperature of 300°F, these inserts ensure reliable performance. Ideal for both consumer and institutional use, this assortment pack guarantees accurate flow rate control in various applications.
Product Specifications
Dimensions Orifice Diameter
0.026 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
10/32
Dimensions Total Length
0.425 in
Dimensions Width Across Flats Hex
3/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.05 | 5 psig: 9.20 | 10 psig: 13.0 | 15 psig: 16.1 | 20 psig: 18.9 | 25 psig: 21.6 | 30 psig: 24.4 | 40 psig: 29.9 | 50 psig: 35.2 | 60 psig: 40.7 | 70 psig: 46.0 | 80 psig: 51.3 | 90 psig: 56.8 | 100 psig: 62.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.91 | 5 psig (34.5 kPag): 4.34 | 10 psig (69.0 kPag): 6.15 | 15 psig (103.4 kPag): 7.58 | 20 psig (137.9 kPag): 8.90 | 25 psig (172.4 kPag): 10.2 | 30 psig (206.9 kPag): 11.5 | 40 psig (275.8 kPag): 14.1 | 50 psig (344.8 kPag): 16.6 | 60 psig (413.7 kPag): 19.2 | 70 psig (482.7 kPag): 21.7 | 80 psig (551.6 kPag): 24.2 | 90 psig (620.6 kPag): 26.8 | 100 psig (689.5 kPag): 29.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.73 | 20 In. Hg.: 7.73 | 30 In. Hg.: 7.73
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.65 | 20 In. Hg. (508 Mm. Hg.): 3.65 | 30 In. Hg. (762 Mm. Hg.): 3.65
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.81 | 10 In. Hg.: 7.29
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.74 | 10 In. Hg. (254 Mm. Hg.): 3.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.016 | 2 psig: 0.023 | 3 psig: 0.028 | 4 psig: 0.032 | 5 psig: 0.036 | 6 psig: 0.039 | 7 psig: 0.042 | 8 psig: 0.045 | 9 psig: 0.048 | 10 psig: 0.051 | 15 psig: 0.062 | 20 psig: 0.072 | 30 psig: 0.088 | 40 psig: 0.101 | 50 psig: 0.113 | 60 psig: 0.124 | 70 psig: 0.134 | 80 psig: 0.143 | 90 psig: 0.152 | 100 psig: 0.160
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.061 | 2 psig (13.8 kPag): 0.086 | 3 psig (20.7 kPag): 0.105 | 4 psig (27.6 kPag): 0.121 | 5 psig (34.5 kPag): 0.135 | 6 psig (41.4 kPag): 0.135 | 7 psig (48.3 kPag): 0.160 | 8 psig (55.2 kPag): 0.171 | 9 psig (62.1 kPag): 0.182 | 10 psig (69 kPag): 0.192 | 15 psig (103.4 kPag): 0.235 | 20 psig (137.9 kPag): 0.271 | 30 psig (206.9 kPag): 0.332 | 40 psig (275.8 kPag): 0.383 | 50 psig (344.8 kPag): 0.428 | 60 psig (413.7 kPag): 0.469 | 70 psig (482.7 kPag): 0.507 | 80 psig (551.6 kPag): 0.542 | 90 psig (620.6 kPag): 0.575 | 100 psig (689.5 kPag): 0.606
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.016
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.070 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
26
Specifications Screened
None
Specifications Seal Material
Viton
