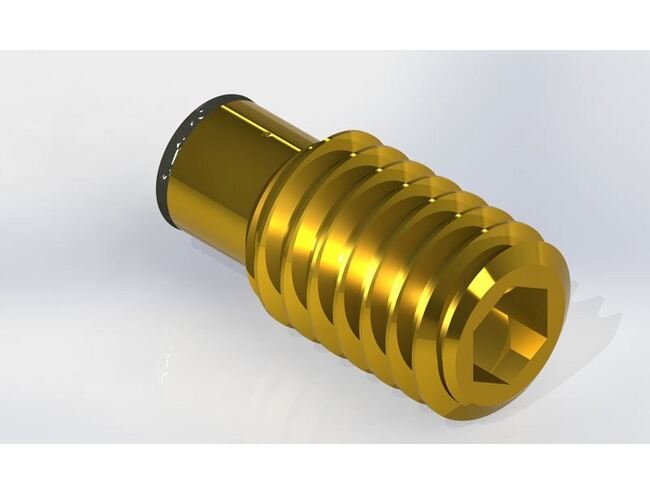

Brass Threaded Inserts with Nose Seals Pack
Brass Threaded Inserts with Nose Seals Pack
SKU:PRE-861eab
Maximize flow control precision with Brass Threaded Inserts Pack. High-quality brass material with Viton seal ensures reliable performance up to 300°F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Threaded Inserts with Nose Seals Pack
$29.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Inserts with Nose Seals Pack
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

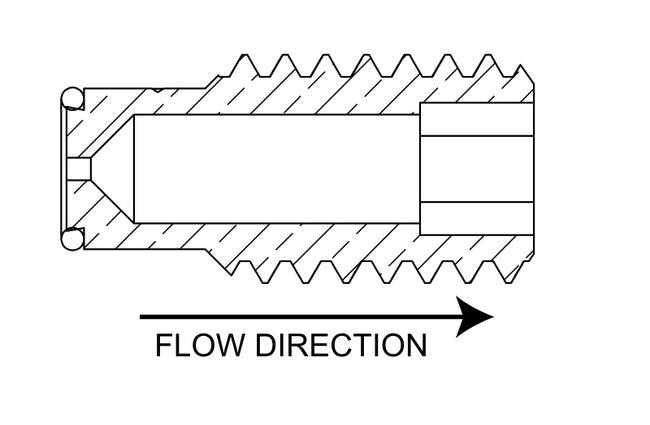

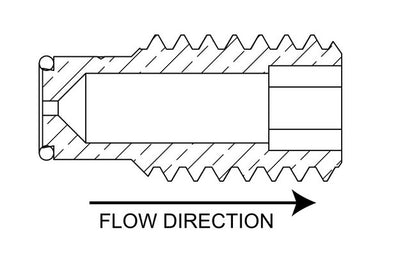

Enhance liquid or gas flow control with precision using the Brass Threaded Inserts with Nose Seals Pack. Made of high-quality brass with Viton seal material, these threaded inserts feature accurate orifice sizes and are designed for maximum temperature and pressure of 300°F and 200 psig respectively. With precise dimensions and flow data provided, these inserts ensure consistent and reliable performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

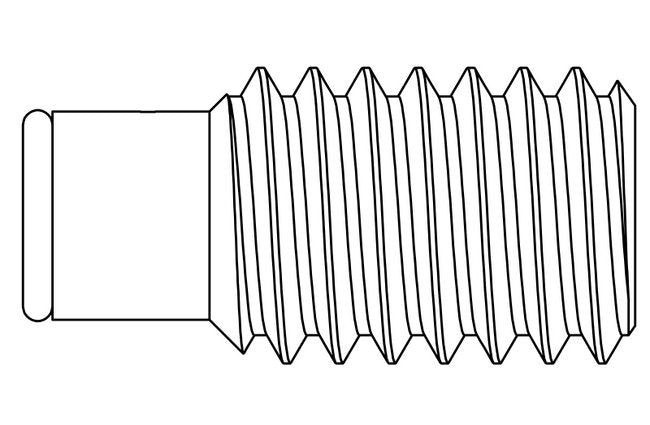

Dimensions Orifice Diameter
0.0051 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.640 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.136 | 5 psig: 0.33 | 10 psig: 0.47 | 15 psig: 0.59 | 20 psig: 0.70 | 25 psig: 0.82 | 30 psig: 0.92 | 40 psig: 1.15 | 50 psig: 1.37 | 60 psig: 1.59 | 70 psig: 1.82 | 80 psig: 2.04 | 90 psig: 2.27 | 100 psig: 2.48
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.064 | 5 psig (34.5 kPag): 0.16 | 10 psig (69.0 kPag): 0.22 | 15 psig (103.4 kPag): 0.28 | 20 psig (137.9 kPag): 0.33 | 25 psig (172.4 kPag): 0.39 | 30 psig (206.9 kPag): 0.44 | 40 psig (275.8 kPag): 0.54 | 50 psig (344.8 kPag): 0.65 | 60 psig (413.7 kPag): 0.75 | 70 psig (482.7 kPag): 0.86 | 80 psig (551.6 kPag): 0.96 | 90 psig (620.6 kPag): 1.07 | 100 psig (689.5 kPag): 1.17
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.284 | 20 In. Hg.: 0.284 | 30 In. Hg.: 0.284
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.134 | 20 In. Hg. (508 Mm. Hg.): 0.134 | 30 In. Hg. (762 Mm. Hg.): 0.134
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.203 | 10 In. Hg.: 0.263
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.096 | 10 In. Hg. (254 Mm. Hg.): 0.124
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0006 | 2 psig: 0.0009 | 3 psig: 0.0011 | 4 psig: 0.0012 | 5 psig: 0.0014 | 6 psig: 0.0015 | 7 psig: 0.0016 | 8 psig: 0.0017 | 9 psig: 0.0018 | 10 psig: 0.0019 | 15 psig: 0.0024 | 20 psig: 0.0027 | 30 psig: 0.0033 | 40 psig: 0.0039 | 50 psig: 0.0043 | 60 psig: 0.0047 | 70 psig: 0.0051 | 80 psig: 0.0055 | 90 psig: 0.0058 | 100 psig: 0.0061
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0023 | 2 psig (13.8 kPag): 0.0033 | 3 psig (20.7 kPag): 0.0040 | 4 psig (27.6 kPag): 0.0046 | 5 psig (34.5 kPag): 0.0052 | 6 psig (41.4 kPag): 0.0052 | 7 psig (48.3 kPag): 0.0061 | 8 psig (55.2 kPag): 0.0065 | 9 psig (62.1 kPag): 0.0069 | 10 psig (69 kPag): 0.0073 | 15 psig (103.4 kPag): 0.0089 | 20 psig (137.9 kPag): 0.0103 | 30 psig (206.9 kPag): 0.0126 | 40 psig (275.8 kPag): 0.0146 | 50 psig (344.8 kPag): 0.0163 | 60 psig (413.7 kPag): 0.0179 | 70 psig (482.7 kPag): 0.0193 | 80 psig (551.6 kPag): 0.0207 | 90 psig (620.6 kPag): 0.0219 | 100 psig (689.5 kPag): 0.0231
Specifications Connection A
5/16"-18 UNC Threaded Insert O-ring seal
Specifications Cv
0.00061
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.125 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
5
Specifications Screened
None
Specifications Seal Material
Viton
