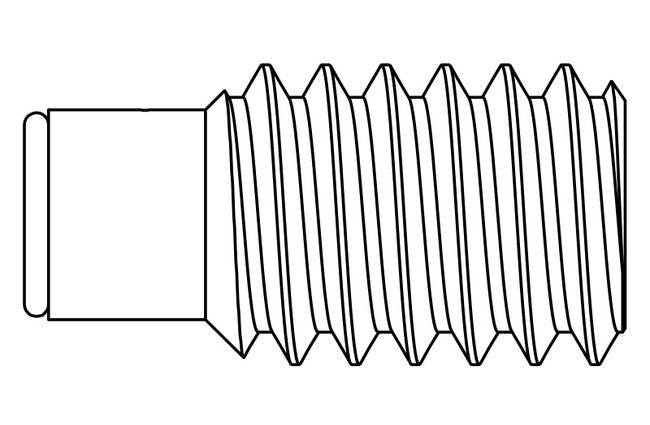

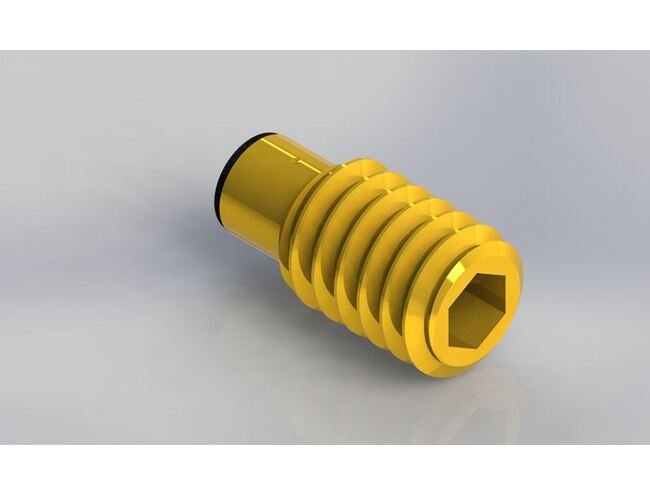

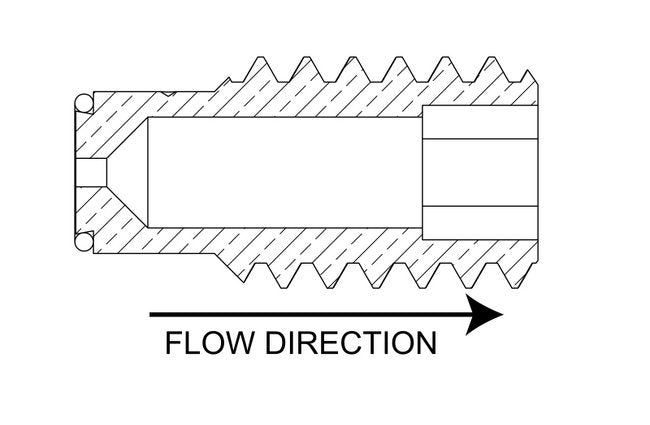

Enhance your precision flow control with these Brass Threaded Inserts featuring Viton o-ring seal. Ideal for fittings, manifolds, and custom parts to optimize liquid or gas flow rates. With dimensions of 0.0670 in orifice diameter and 1/4-20 threaded connection, these inserts provide secure and accurate sealing against temperatures up to 300°F and pressures of 200 psig. Designed for reliability and efficiency in industrial applications, these inserts offer precise flow data for air and water. Upgrade to these high-quality brass inserts for consistent performance and durability.
Product Specifications
Dimensions Orifice Diameter
0.0670 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
1/4-20
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
1/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 30.1 | 5 psig: 64.2 | 10 psig: 86.2 | 15 psig: 104 | 20 psig: 123 | 25 psig: 141 | 30 psig: 160 | 40 psig: 196 | 50 psig: 233 | 60 psig: 269 | 70 psig: 307 | 80 psig: 343 | 90 psig: 379 | 100 psig: 415
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 14.2 | 5 psig (34.5 kPag): 30.3 | 10 psig (69.0 kPag): 40.7 | 15 psig (103.4 kPag): 49.3 | 20 psig (137.9 kPag): 58 | 25 psig (172.4 kPag): 66.7 | 30 psig (206.9 kPag): 75.4 | 40 psig (275.8 kPag): 92.7 | 50 psig (344.8 kPag): 110 | 60 psig (413.7 kPag): 127 | 70 psig (482.7 kPag): 145 | 80 psig (551.6 kPag): 162 | 90 psig (620.6 kPag): 179 | 100 psig (689.5 kPag): 196
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 54.0 | 20 In. Hg.: 54.0 | 30 In. Hg.: 54.0
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 25.5 | 20 In. Hg. (508 Mm. Hg.): 25.5 | 30 In. Hg. (762 Mm. Hg.): 25.5
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 42.4 | 10 In. Hg.: 51.7
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 20 | 10 In. Hg. (254 Mm. Hg.): 24.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.100 | 2 psig: 0.141 | 3 psig: 0.173 | 4 psig: 0.200 | 5 psig: 0.224 | 6 psig: 0.245 | 7 psig: 0.265 | 8 psig: 0.283 | 9 psig: 0.300 | 10 psig: 0.316 | 15 psig: 0.387 | 20 psig: 0.447 | 30 psig: 0.548 | 40 psig: 0.632 | 50 psig: 0.707 | 60 psig: 0.775 | 70 psig: 0.837 | 80 psig: 0.894 | 90 psig: 0.949 | 100 psig: 1.000
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.379 | 2 psig (13.8 kPag): 0.535 | 3 psig (20.7 kPag): 0.656 | 4 psig (27.6 kPag): 0.757 | 5 psig (34.5 kPag): 0.846 | 6 psig (41.4 kPag): 0.927 | 7 psig (48.3 kPag): 1.002 | 8 psig (55.2 kPag): 1.071 | 9 psig (62.1 kPag): 1.136 | 10 psig (69 kPag): 1.197 | 15 psig (103.4 kPag): 1.466 | 20 psig (137.9 kPag): 1.693 | 30 psig (206.9 kPag): 2.073 | 40 psig (275.8 kPag): 2.394 | 50 psig (344.8 kPag): 2.677 | 60 psig (413.7 kPag): 2.932 | 70 psig (482.7 kPag): 3.167 | 80 psig (551.6 kPag): 3.386 | 90 psig (620.6 kPag): 3.591 | 100 psig (689.5 kPag): 3.785
Specifications Connection A
1/4"-20 UNC Threaded Insert O-ring seal
Specifications Cv
0.100
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.093 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
67
Specifications Screened
None
Specifications Seal Material
Viton
