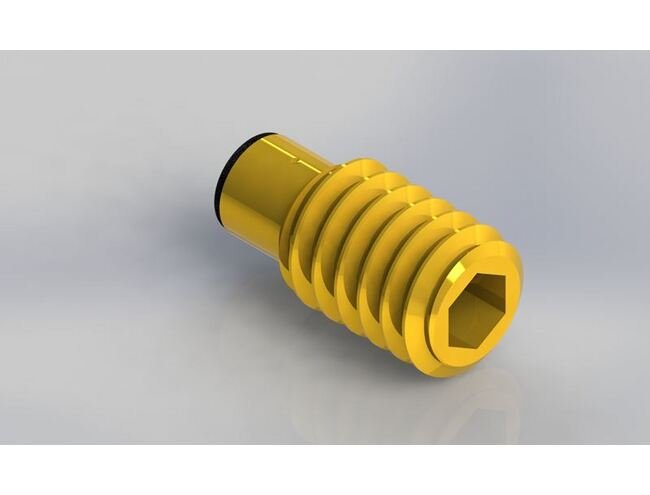

Brass Threaded Inserts with O-Ring Seal, 4-Pack
Brass Threaded Inserts with O-Ring Seal, 4-Pack
SKU:PRE-79a8ff
Enhance precision and efficiency with our Brass Threaded Inserts for accurate flow control of liquids or gases.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Threaded Inserts with O-Ring Seal, 4-Pack
$24.99
Quantity: 1
Claim Your Seller Account
Brass Threaded Inserts with O-Ring Seal, 4-Pack
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

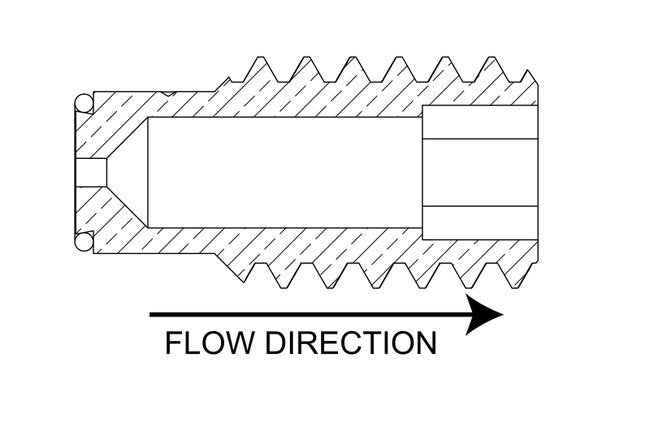

Upgrade your precision control systems with our Brass Threaded Inserts featuring Viton O-ring seals for maximum efficiency. Perfect for accurate flow rate control of liquids or gases, these inserts ensure reliable performance in fittings, manifolds, and custom parts.
Product Specifications
Dimensions Orifice Diameter
0.029 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
1/4-20
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
1/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.06 | 5 psig: 11.3 | 10 psig: 16.6 | 15 psig: 20.3 | 20 psig: 23.7 | 25 psig: 27.1 | 30 psig: 30.5 | 40 psig: 37.1 | 50 psig: 43.9 | 60 psig: 50.4 | 70 psig: 57.2 | 80 psig: 64.0 | 90 psig: 71.0 | 100 psig: 78.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.39 | 5 psig (34.5 kPag): 5.31 | 10 psig (69.0 kPag): 7.83 | 15 psig (103.4 kPag): 9.58 | 20 psig (137.9 kPag): 11.2 | 25 psig (172.4 kPag): 12.8 | 30 psig (206.9 kPag): 14.4 | 40 psig (275.8 kPag): 17.5 | 50 psig (344.8 kPag): 20.7 | 60 psig (413.7 kPag): 23.8 | 70 psig (482.7 kPag): 27.0 | 80 psig (551.6 kPag): 30.2 | 90 psig (620.6 kPag): 33.5 | 100 psig (689.5 kPag): 36.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 9.56 | 20 In. Hg.: 9.56 | 30 In. Hg.: 9.56
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.51 | 20 In. Hg. (508 Mm. Hg.): 4.51 | 30 In. Hg. (762 Mm. Hg.): 4.51
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 7.23 | 10 In. Hg.: 9.11
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.41 | 10 In. Hg. (254 Mm. Hg.): 4.30
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.019 | 2 psig: 0.027 | 3 psig: 0.033 | 4 psig: 0.038 | 5 psig: 0.042 | 6 psig: 0.047 | 7 psig: 0.050 | 8 psig: 0.054 | 9 psig: 0.057 | 10 psig: 0.060 | 15 psig: 0.074 | 20 psig: 0.085 | 30 psig: 0.104 | 40 psig: 0.120 | 50 psig: 0.134 | 60 psig: 0.147 | 70 psig: 0.159 | 80 psig: 0.170 | 90 psig: 0.180 | 100 psig: 0.190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.072 | 2 psig (13.8 kPag): 0.102 | 3 psig (20.7 kPag): 0.125 | 4 psig (27.6 kPag): 0.144 | 5 psig (34.5 kPag): 0.161 | 6 psig (41.4 kPag): 0.161 | 7 psig (48.3 kPag): 0.190 | 8 psig (55.2 kPag): 0.203 | 9 psig (62.1 kPag): 0.216 | 10 psig (69 kPag): 0.227 | 15 psig (103.4 kPag): 0.279 | 20 psig (137.9 kPag): 0.322 | 30 psig (206.9 kPag): 0.394 | 40 psig (275.8 kPag): 0.455 | 50 psig (344.8 kPag): 0.509 | 60 psig (413.7 kPag): 0.557 | 70 psig (482.7 kPag): 0.602 | 80 psig (551.6 kPag): 0.643 | 90 psig (620.6 kPag): 0.682 | 100 psig (689.5 kPag): 0.719
Specifications Connection A
1/4"-20 UNC Threaded Insert O-ring seal
Specifications Cv
0.019
Specifications Material
Brass
Specifications Maximum Opening Diameter
0.093 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
29
Specifications Screened
None
Specifications Seal Material
Viton
